AIYIMA

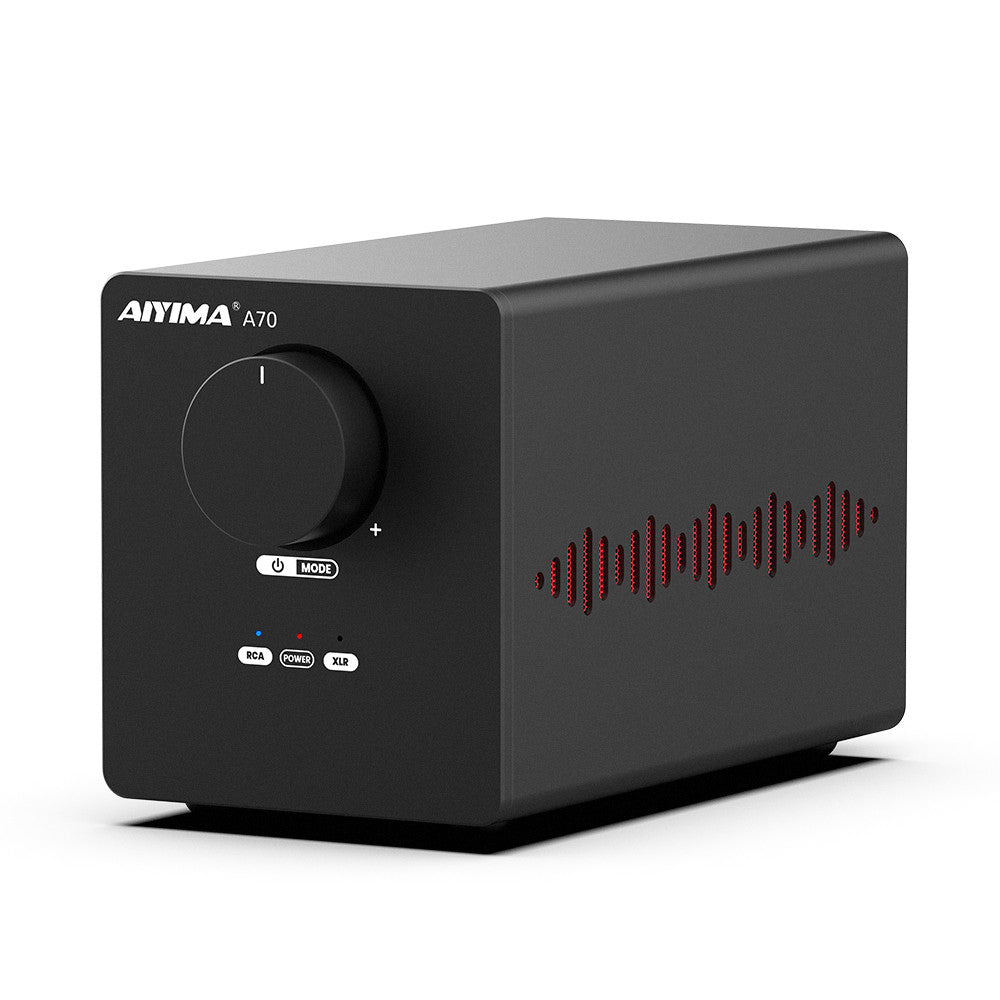

AIYIMA A70

$199.00

4.6

Style: With US 48v5a Power Supply

With US 48v5a Power Supply With EU 48v5a Power Supply With UK 48v5a Power Supply With AU 48v5a Power Supply With US 48v10a Power Supply With EU 48v10a Power Supply With UK 48v10a Power Supply With AU 48v10a Power Supply A70 With No Power Supply

Quantity:

AIYIMA AIYIMA A70

$199.00

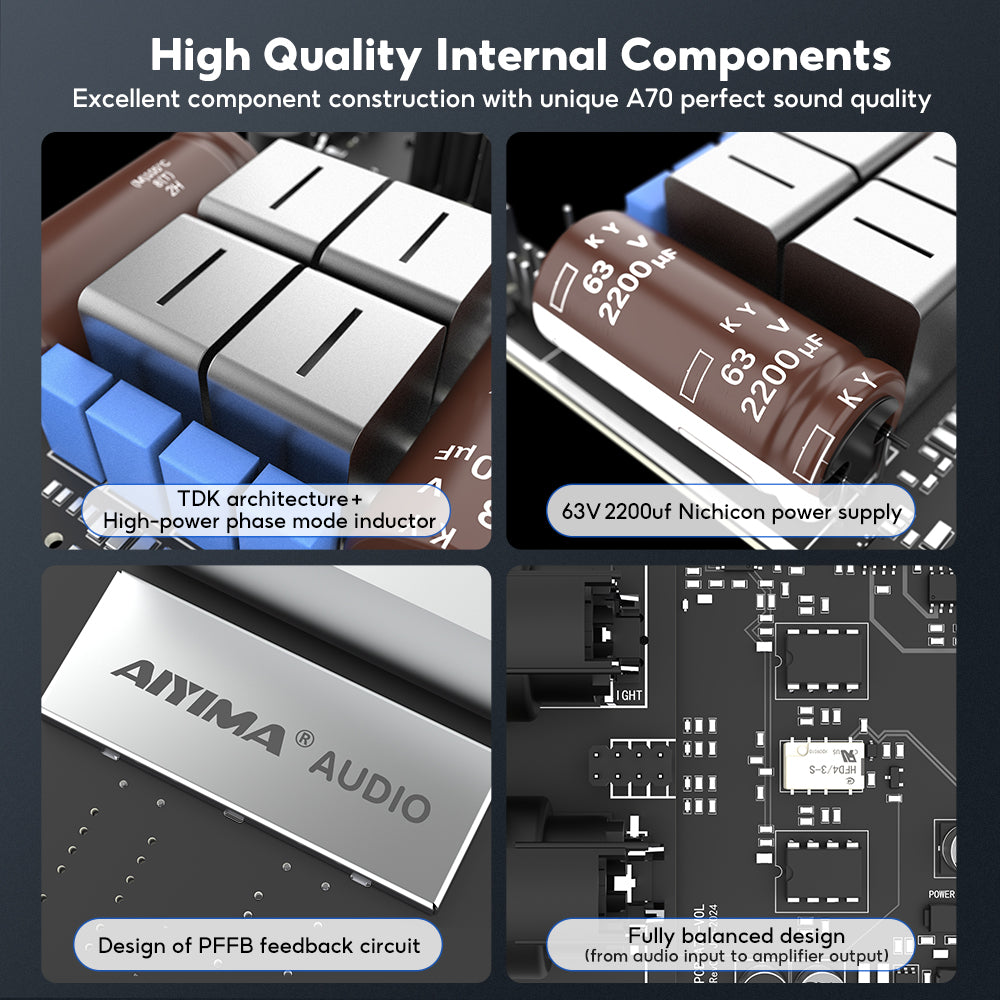

AIYIMA's latest TPA3255 power amplifier has PFFB function and is equipped with 48v5a GAN power supply.

Parameter:
Chipset: TPA3255+NE5532

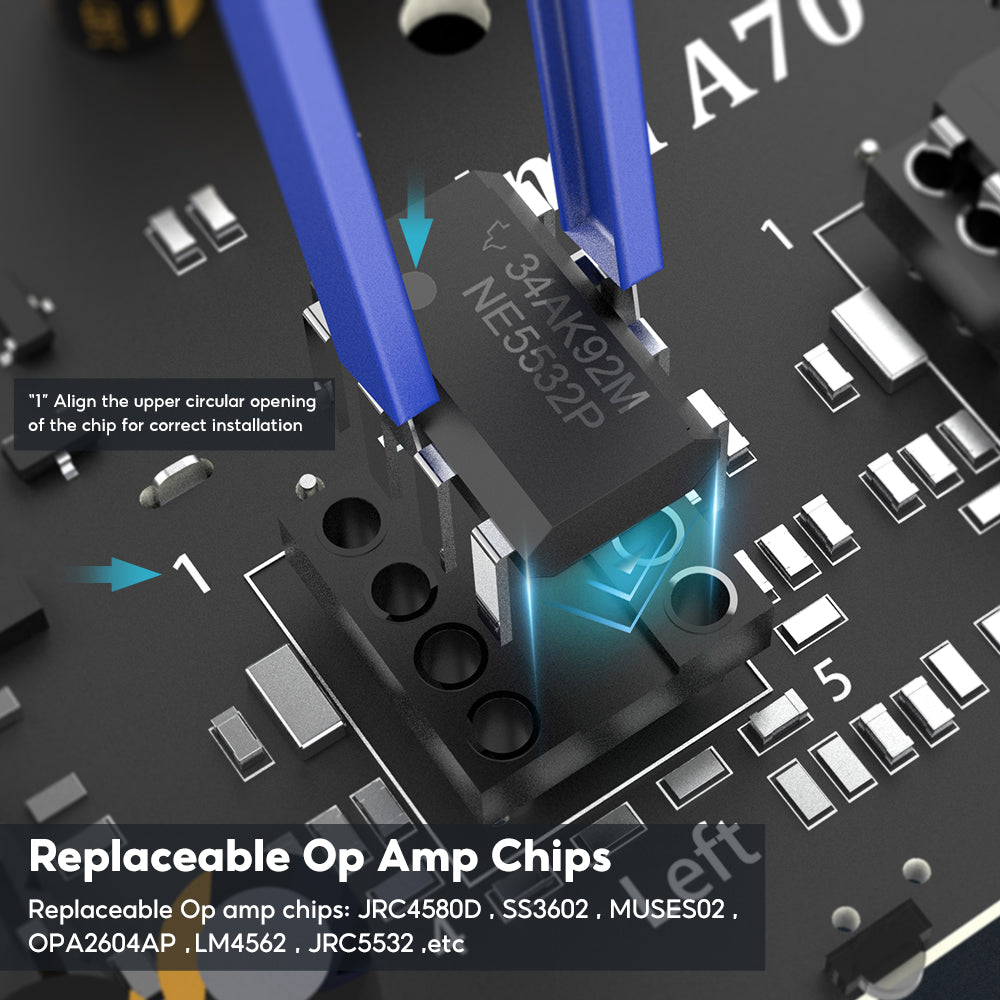

Replaceable operational amplifier chips: RT3609SM, OPA2604, OPA2134, LM4562, JRC5532, OP275GSZ, OPA1612, MUSES01/02/03, etc.
Distortion:0.0015%(@1W)
Signal-to-noise ratio:≥≥116 dB
Frequency response: 20Hz-20KHz (±1DB)
XLR input sensitivity: 3.8Vrms (19dB)
RCA input sensitivity: 1.9Vrms (25 DB)/1.1Vrms (28.5 DB)
Speaker impedance: 4-8Ω
Stereo maximum output power: 2x300 W (@4Ω) 48V10A
Input mode: RCA+XLR

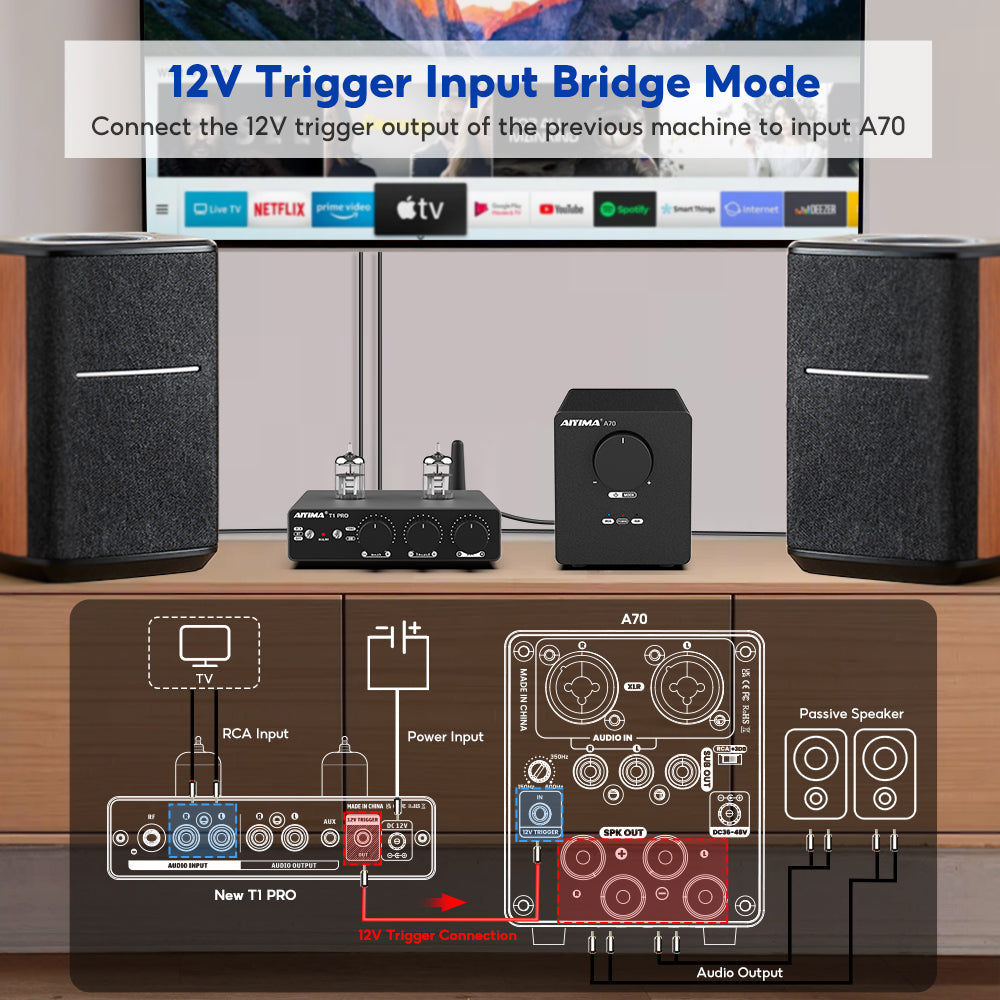

Trigger: 12v Tigger input
Sub Out: 20Hz~150Hz/600Hz(-3dB) (adjustable output cutoff frequency)
Supported equipment: decoders, preamplifiers, computers, CDs, mobile phones, MP3, etc.
Output mode: 2.0 passive speaker+Sub
Working power supply (DC): 36-48V

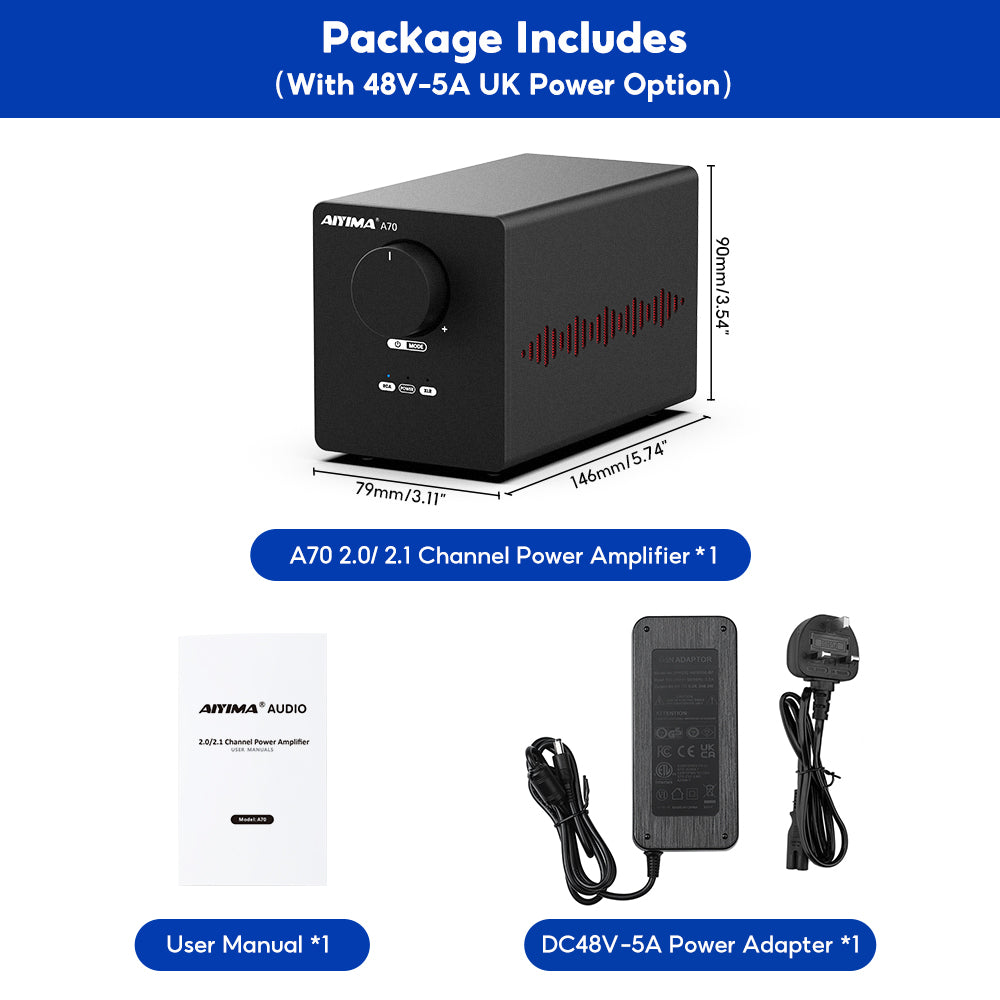

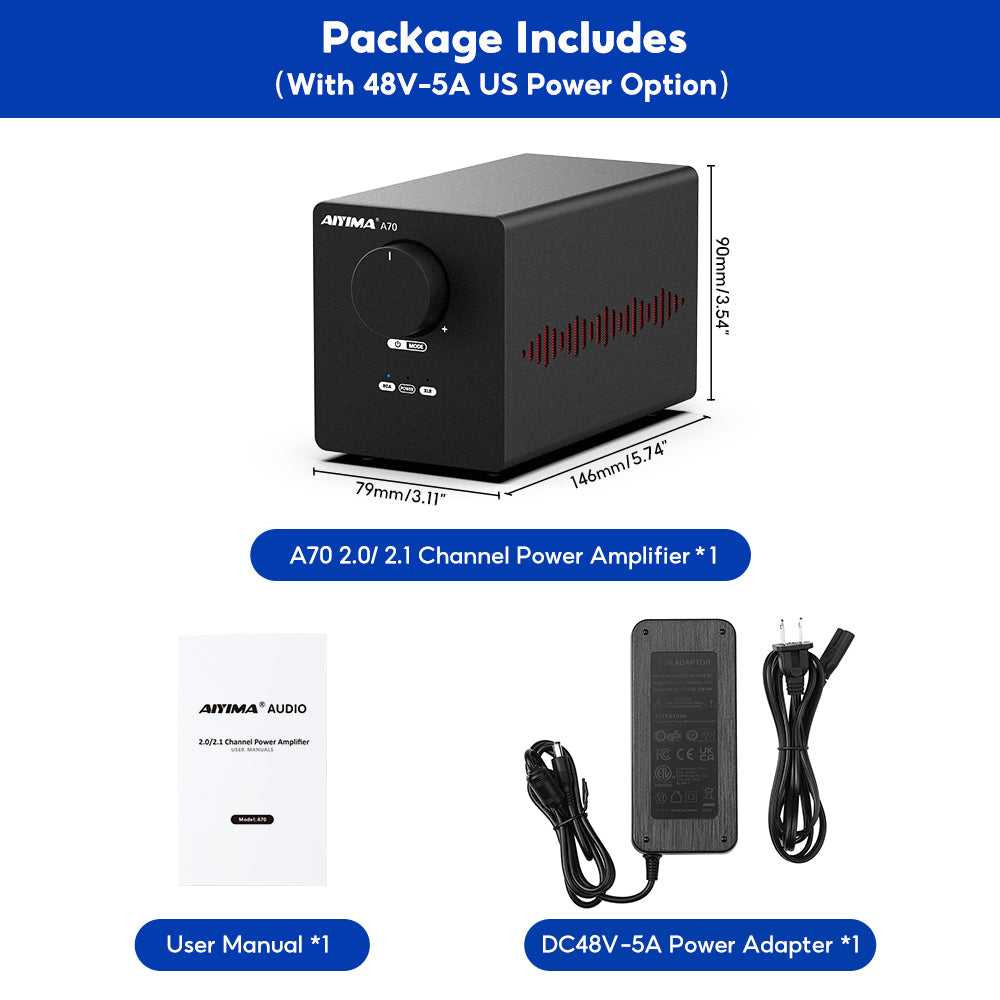

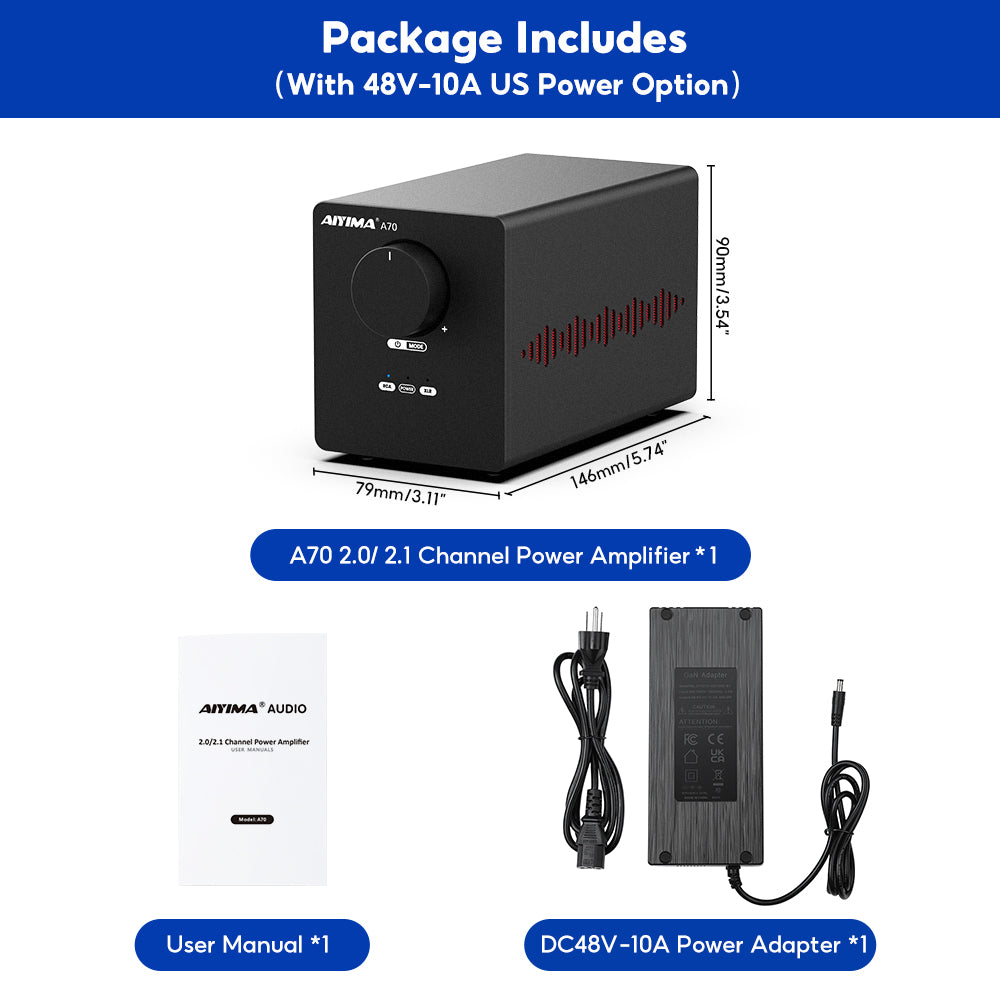

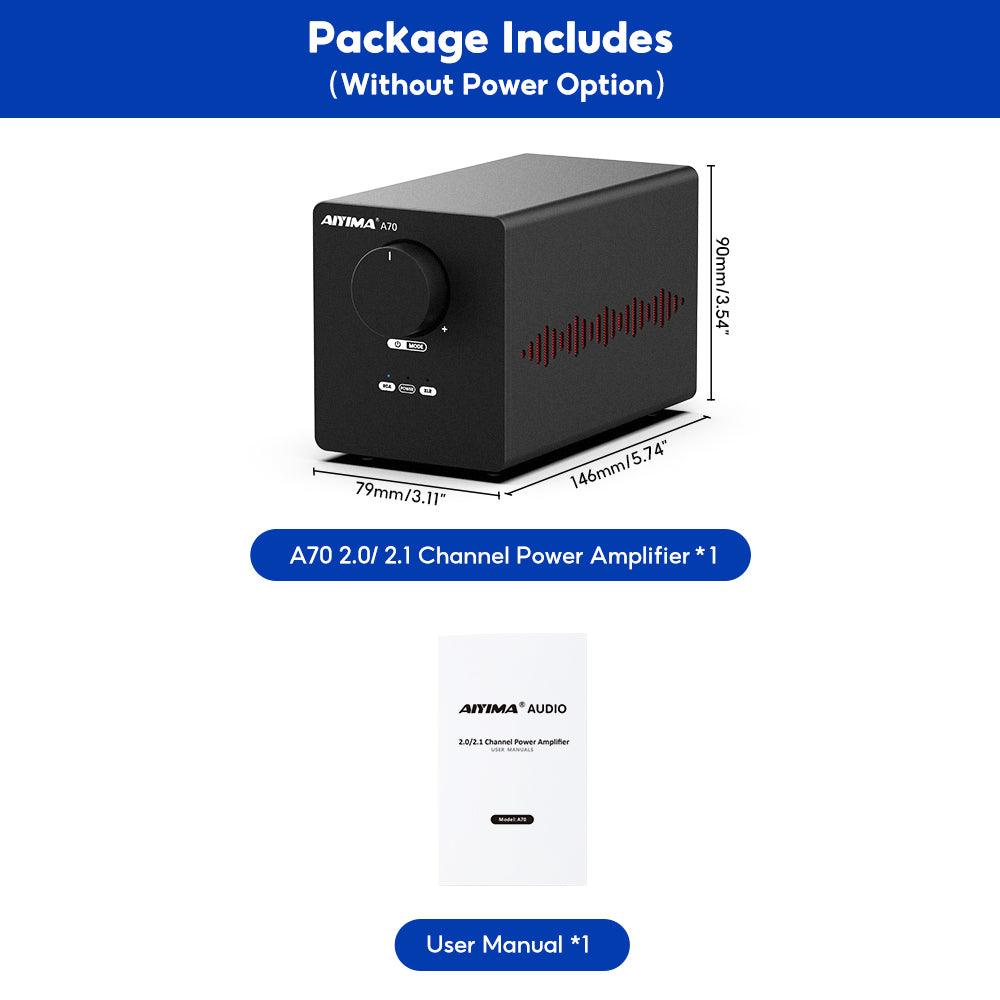

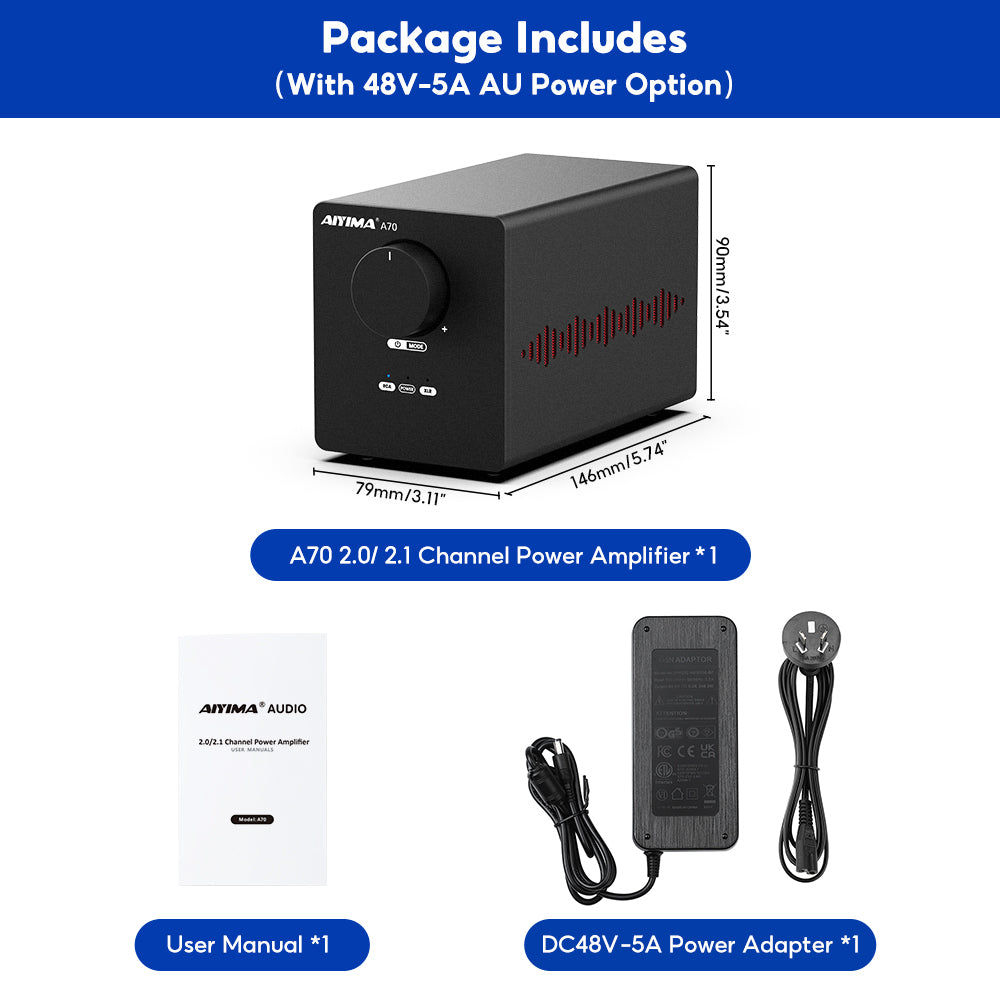

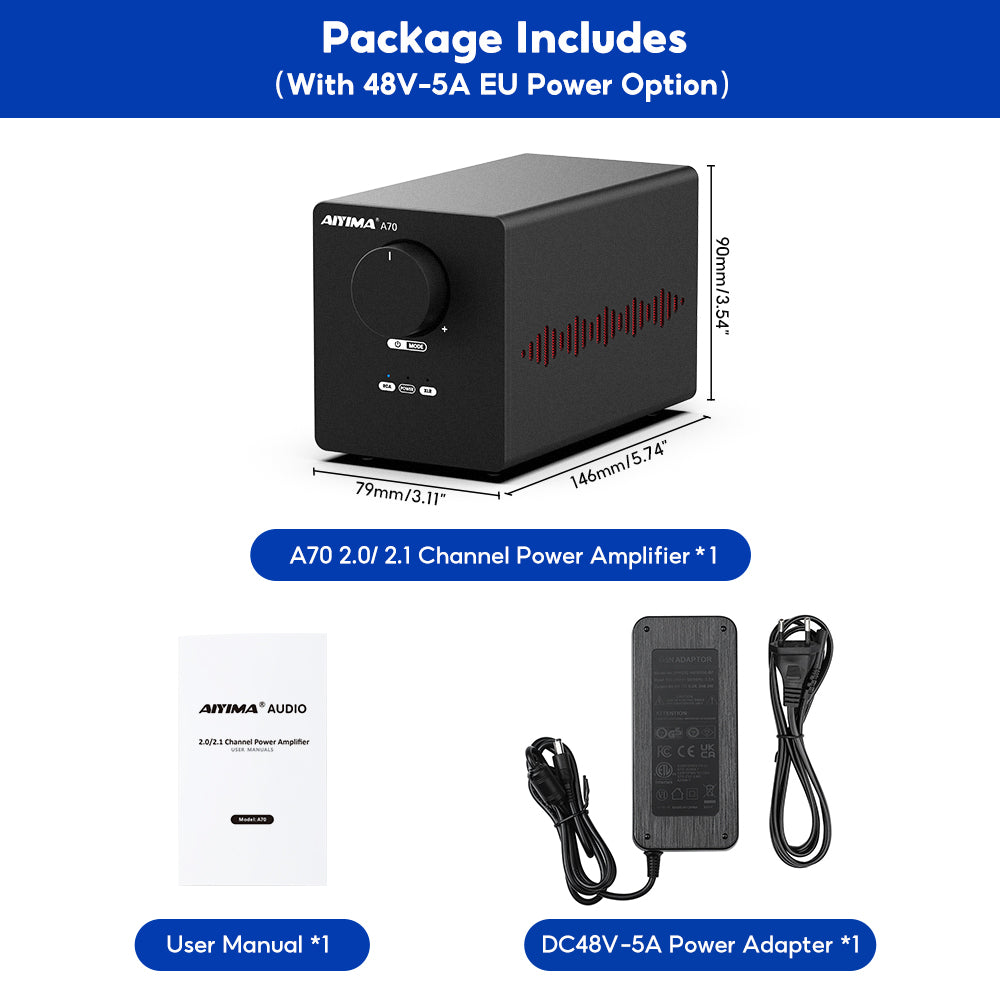

Packaging size (length*width*height): 146mm*79mm*90mm

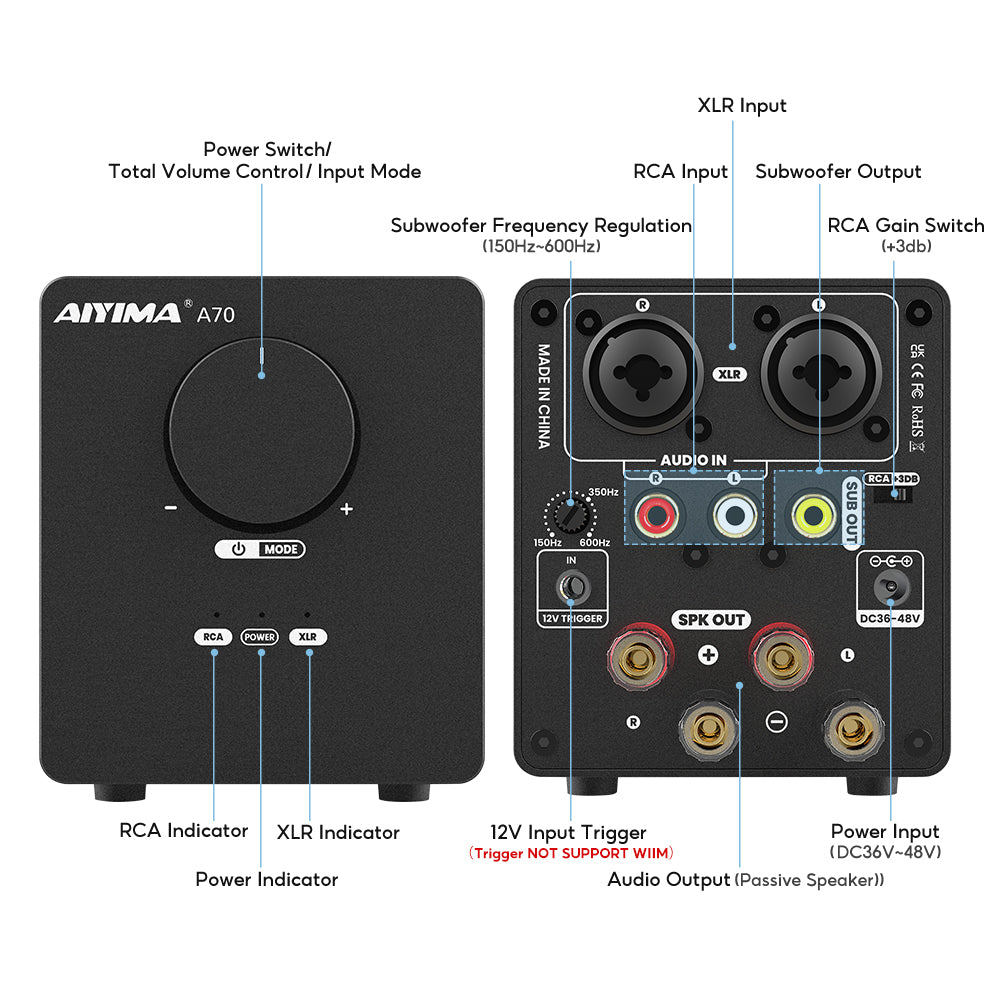

A70 rear panel

SINAD SNR
Amplifier Frequency Response Bass output frequency response Bass output level

Amplifier output distortion scan – 4R/36V/48V

THD+N Amplifier output distortion scan – 8R/36V/48V cable connect

Excellent Quality!

I have this set up to run my front tower speakers connected to my AV receiver. Makes them sound much clearer than my high end Denon. Very good low's, mid's and high's!!! Plenty of power. Highly recommend!

Great sound, but beware of the 10A PSU

The standard unit out of the box exhibits zero noise in the background, especially with the XLR input. When I plug in the upgraded 10A PSU, there is a whooshing sound that appears, and it is very noticeable. I traced it down to a large amount of ground current in the AC ground line, due to either a fault within the unit, or bad design. If you disconnect the ground pin, the noise goes away ! I am not sure it is the safe thing to do, and am thinking of ways to preserve the ground for faults, while filtering out the noise, but I have no time for that now.

Good sound but….

The sound is very good, bud i have problems by using my phono input with my streaming preamp. (Wiim Ultra) i hear a hiss (different sound with missing ground). With my old power amp „Rotel RB-06“ no problems. I switch all the cables. I can not remove the problem with the A70. My guess is the Aiyima 10A/48V power supply unit is scattering a noise in to the phono signal.

Compact and very good sound!

Both RCA and XLR inputs and plenty of power. According to tests I seen it delivers 90W in 8ohm*2 with good PSU. Used a MeanWell 90W AC/DC adapter because of their very high quality and Safety approvals.

A70

Good amp, paired it with a wiim pro plus
