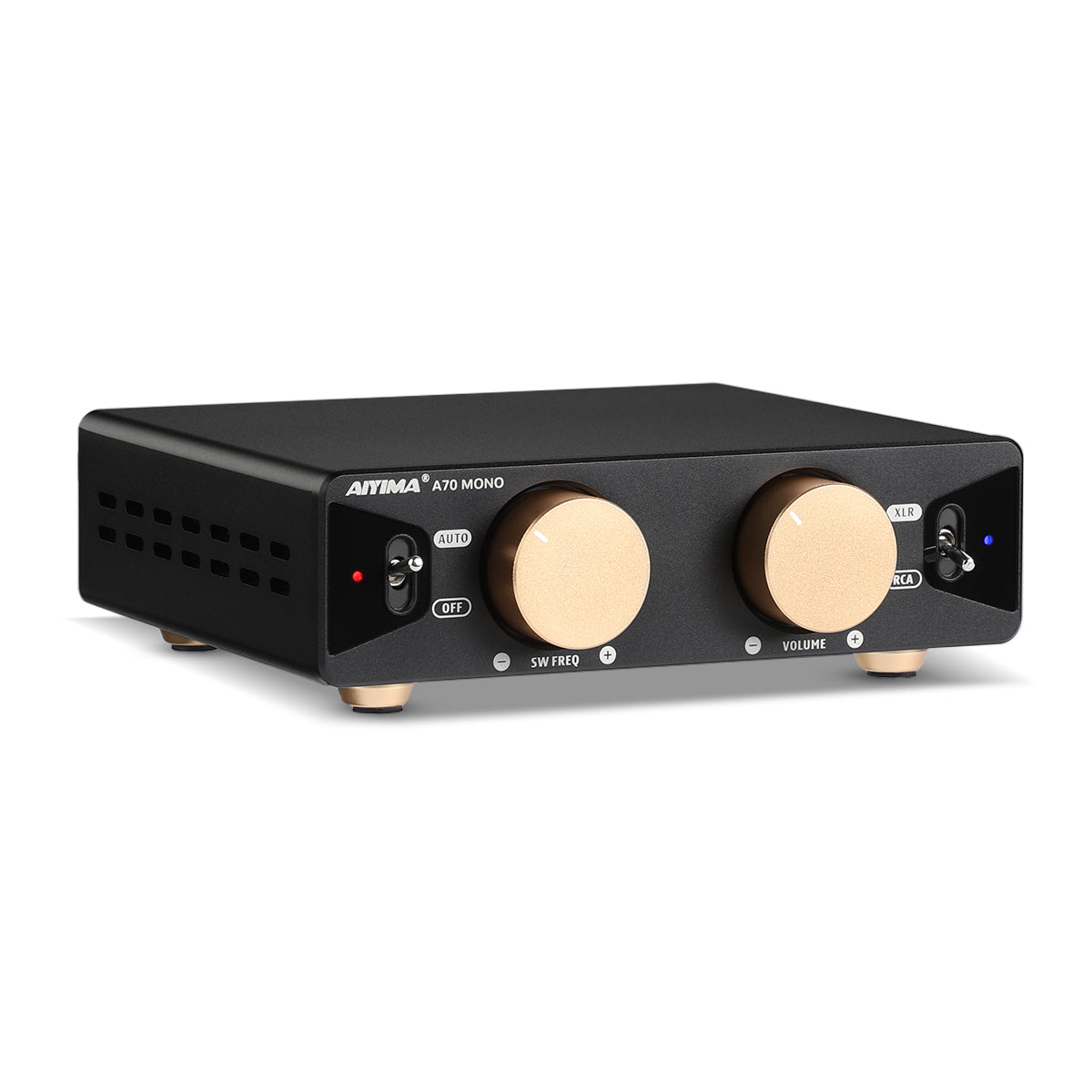

AIYIMA A70 MONO
Feature:

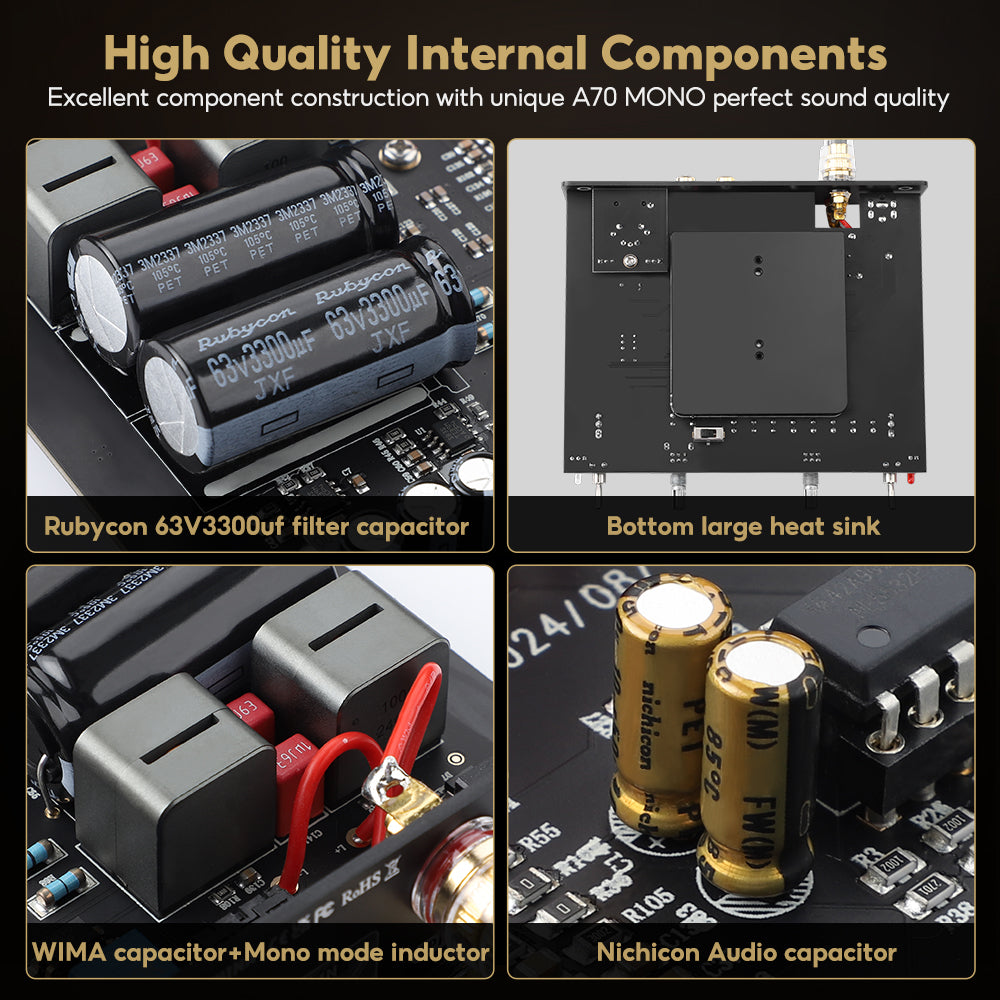

1. Exceptional Audio Quality: Powered by professional audio components and advanced circuit design, this amplifier delivers crystal-clear and powerful sound, perfect for music enthusiasts and home theater systems.
2. Elegant and Compact Design: The precision-crafted metal shell offers a sleek, durable finish, while the compact size ensures it fits seamlessly into any setup, saving space without compromising on aesthetics.
3. Versatile Connectivity: Features multiple audio inputs including RCA, XLR, and a 12V trigger, allowing for easy integration with various audio equipment and streamlining device synchronization.

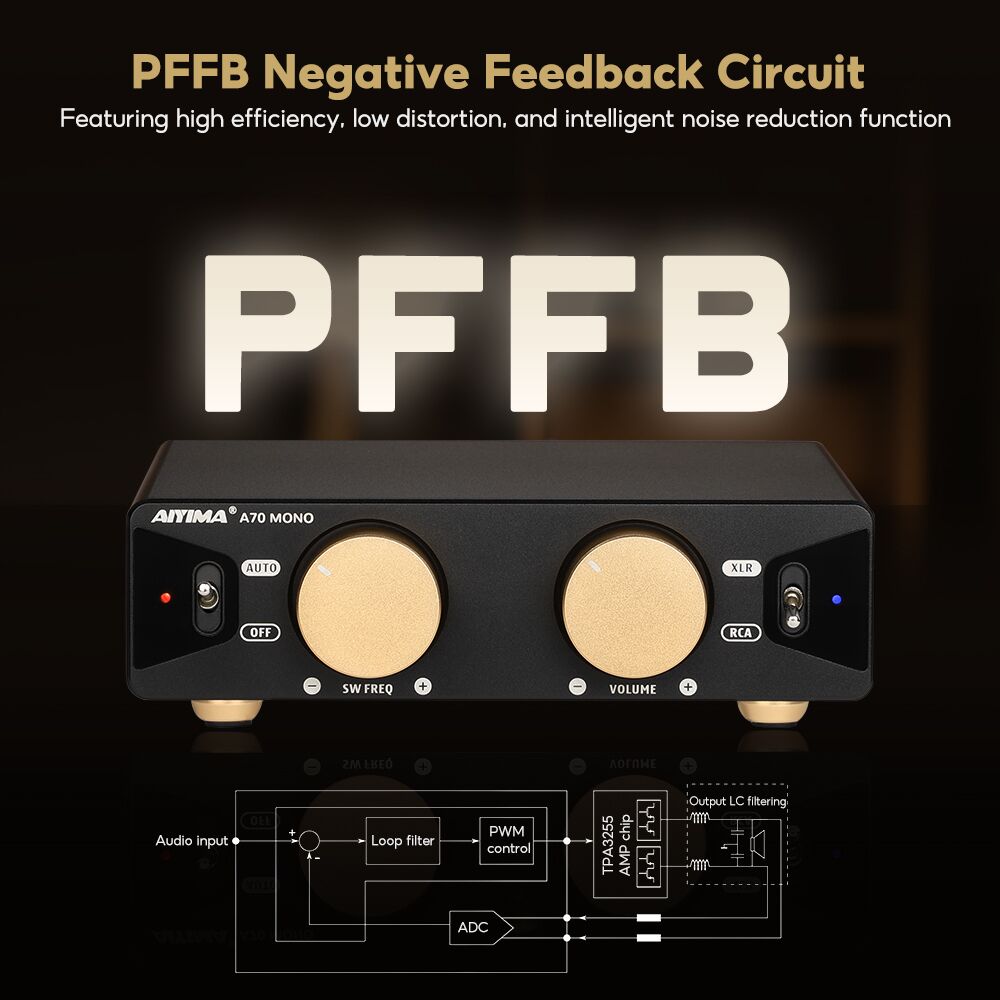

4. Advanced Class D Amplification: Equipped with TI's TPA3255 chip and PurePath Ultra-HD technology, it delivers up to 600W Mono at 2Ω with minimal distortion and excellent performance, ensuring robust and dynamic sound output.

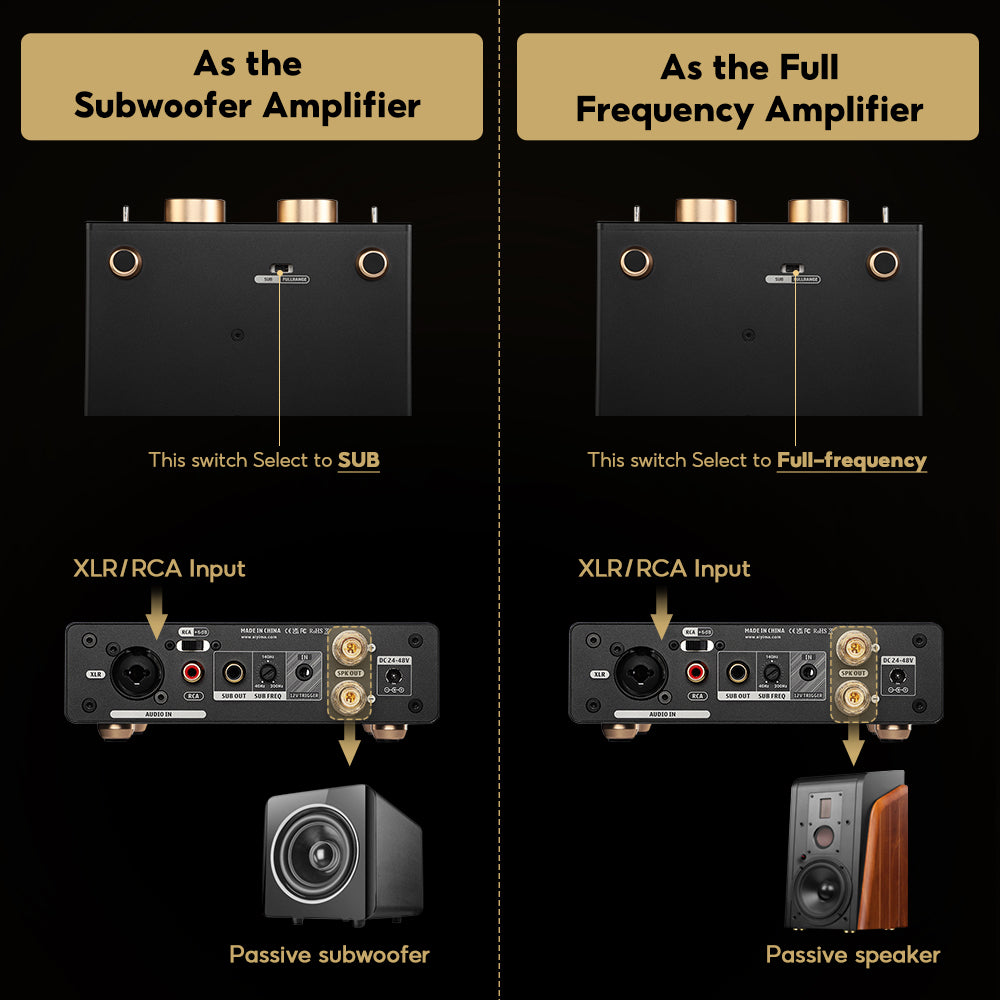

5. Enhanced Functional Features: Includes a 6dB gain boost for RCA inputs, an active subwoofer output with adjustable frequency (40-200Hz), and dual-mode switching for full-range or passive subwoofer output, accommodating diverse audio configurations from mono to 7.1-channel setups.
Parameter:
Chipset: TPA3255+NE5532
Replaceable op-amp chips: RT3609SM, OPA2604, OPA2134, LM4562, JRC5532, OP275GSZ, OPA1612 and so on.
Distortion: 0.001%
xlr/rca SNR: ≥ 116 dB
xlr/rca SNR: 96 dB
Frequency Response: 20Hz-20KHz (±0.5dB)
RCA input sensitivity: low gain 2Vrms(26 dB)/high gain 1Vrms(32 dB)
XLR input sensitivity:4Vrms(19 dB)
Speaker Impedance:2-8Ω
Maximum Output Power: 300W (@4Ω) 48V5A
Input Mode: RCA+XLR
Supported devices: decoder, bilevel preamp, computer, CD, cell phone, MP3, etc.
SUB output sensitivity: 2V
Output Mode: 1.0 passive speaker/0.1 subwoofer + active low-pass
Working power supply: 24-48V
Package Size: 126.5*154.5*42mm
Product net weight:900g
Customer Reviews

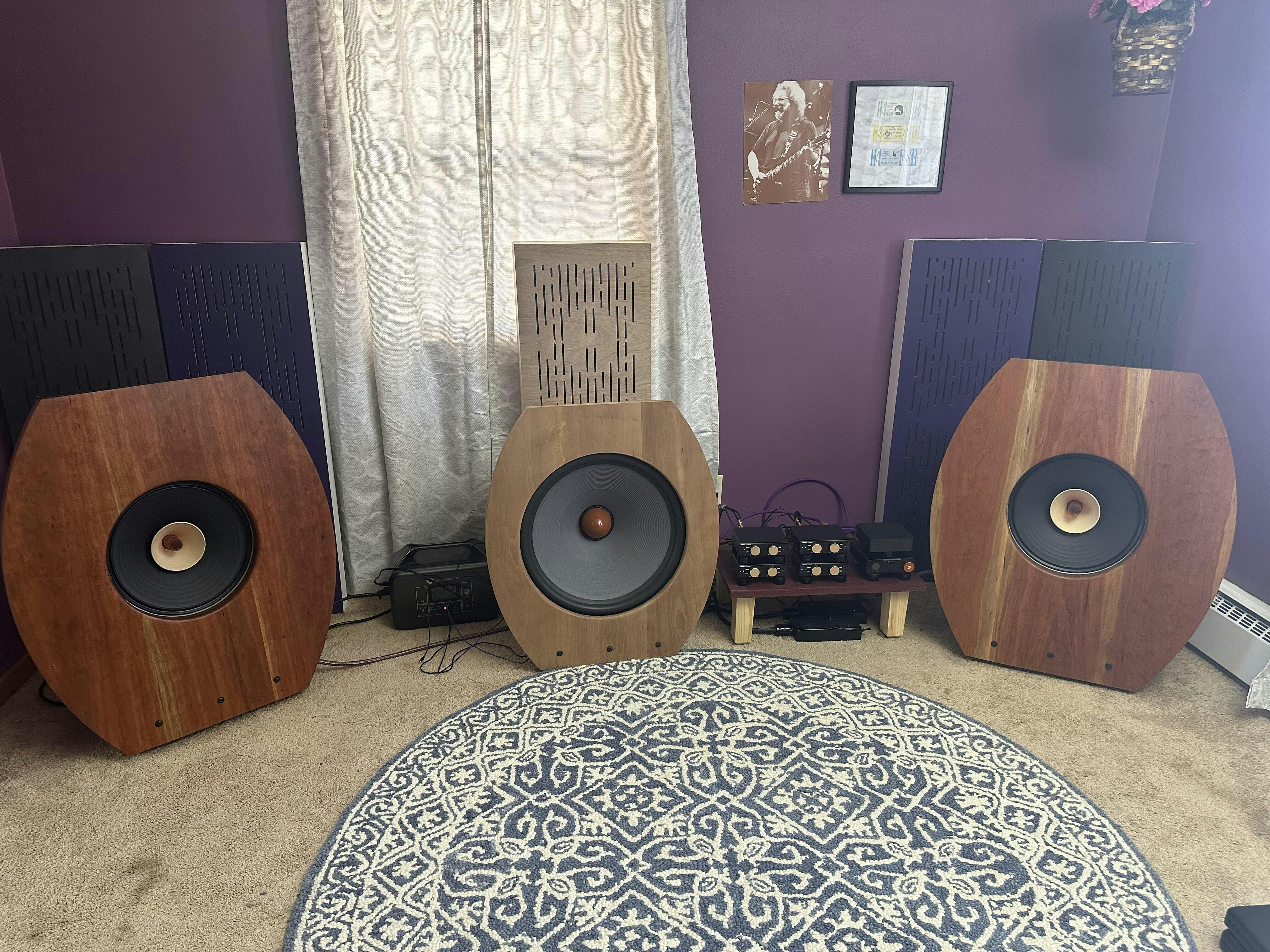

These amps fit my situation perfectly. I use two to drive Lii song f15, and the sub puts to two more A70 monos to drive the Lii song w-21. And the same setup for another system with Lii song fast 8 and w15. I would be happy to send pics. For all those who couldn’t figure out why you added a frequency knob to the front, this is exactly why. Thank you Aiyima
