AIYIMA B07

Sale price$109.00
3.0
-->
Size: No Power Supply

Parameter:
Product Model : AIYIMA B07

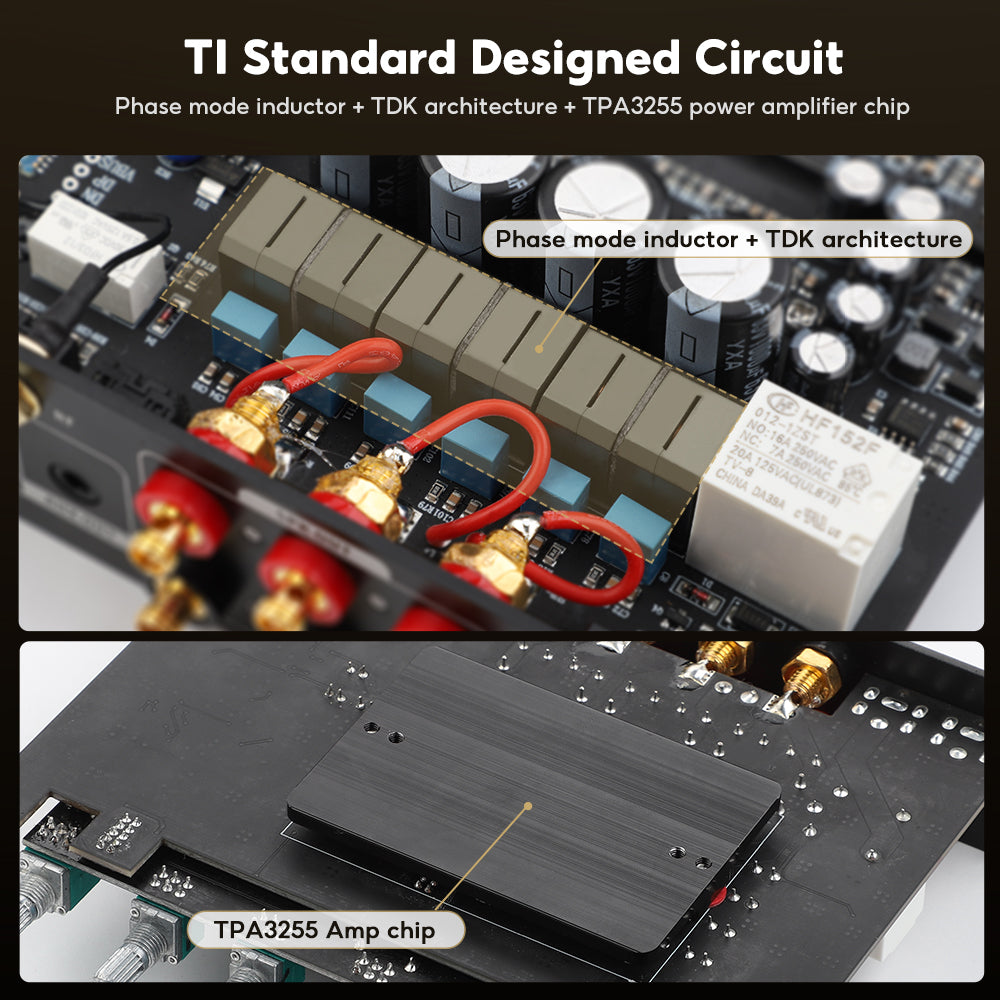

Chipset: TPA3255 +QCC3040+ NE5532
Bluetooth chip: QCC3040 Bluetooth 5.2
Support: AAC,SBC,aptX, APTX-LL,APTX-HD
Op AMP chip: NE5532*6(not replaceable)

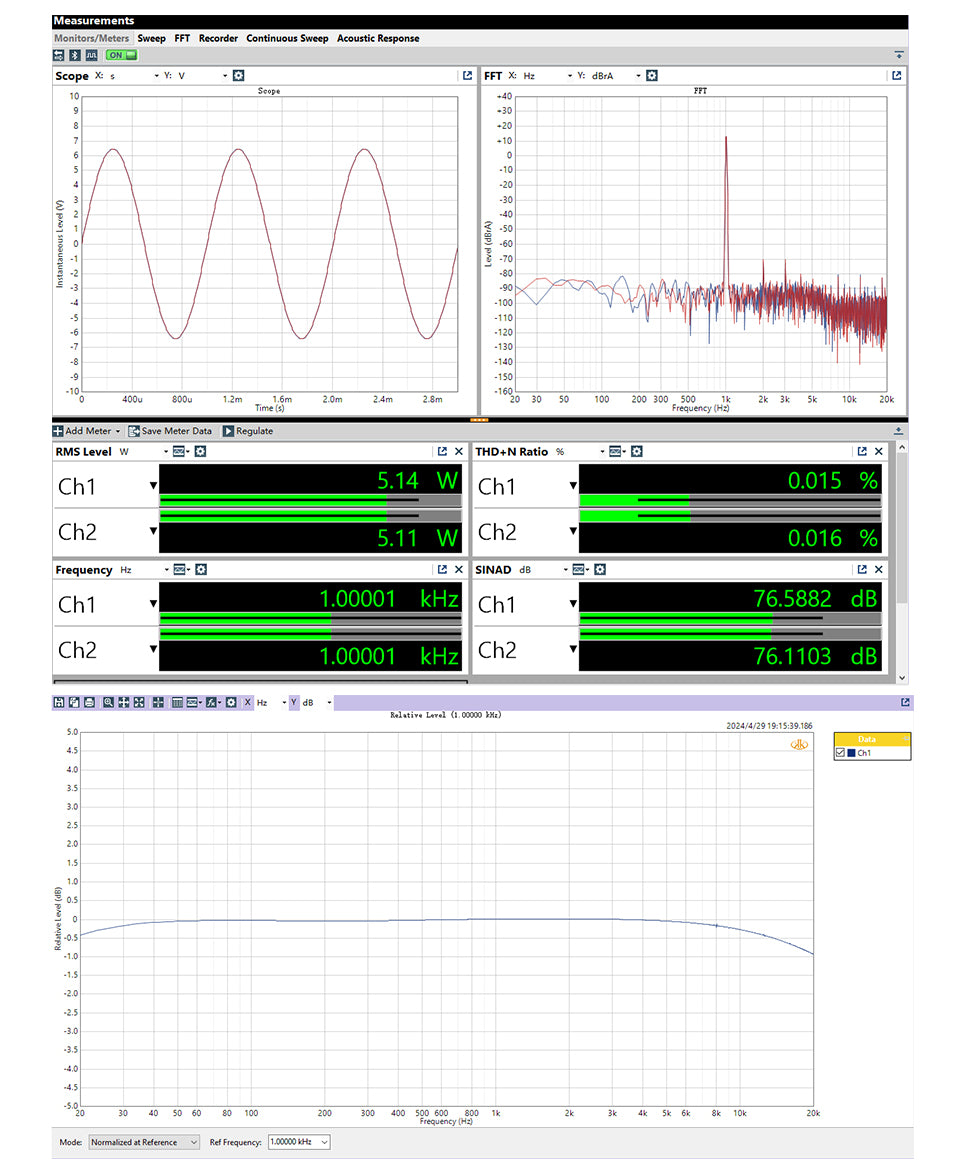

Distortion :0.01%
SNR :≥108db
Frequency response :20-20KHz (±1db)
Input sensitivity: 2v
AUX rated output level: 1.4V
Left and right channel high and low range adjustment: ±6db
Subwoofer adjustment range: ±4db
Subwoofer cut-off frequency: 50-220HZ
Speaker impedance: 4-8 ohm

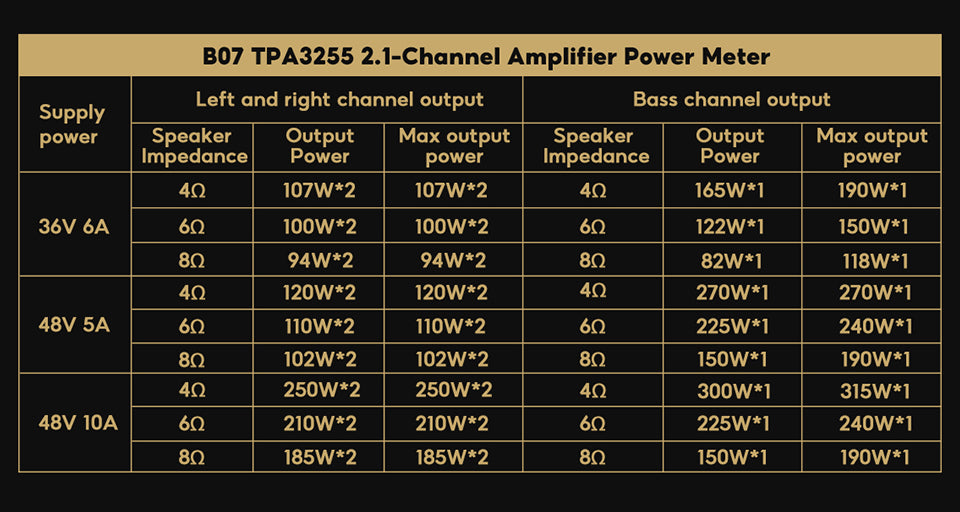

Output power: Left and right channels: 300w*2 at 48V 4Ohm Bass 300w 48V 4Ohm
Input mode: Bluetooth/RCA
Supported devices: mobile phone, tablet, computer, MP3, TV, etc
Output mode: passive speaker + passive subwoofer + active subwoofer
Power supply: DC24-48V (auxiliary power supply 24v-48v)
Note :The primary and secondary power supplies need the same voltage

Size: 154*124*42mm
Net weight: 800g

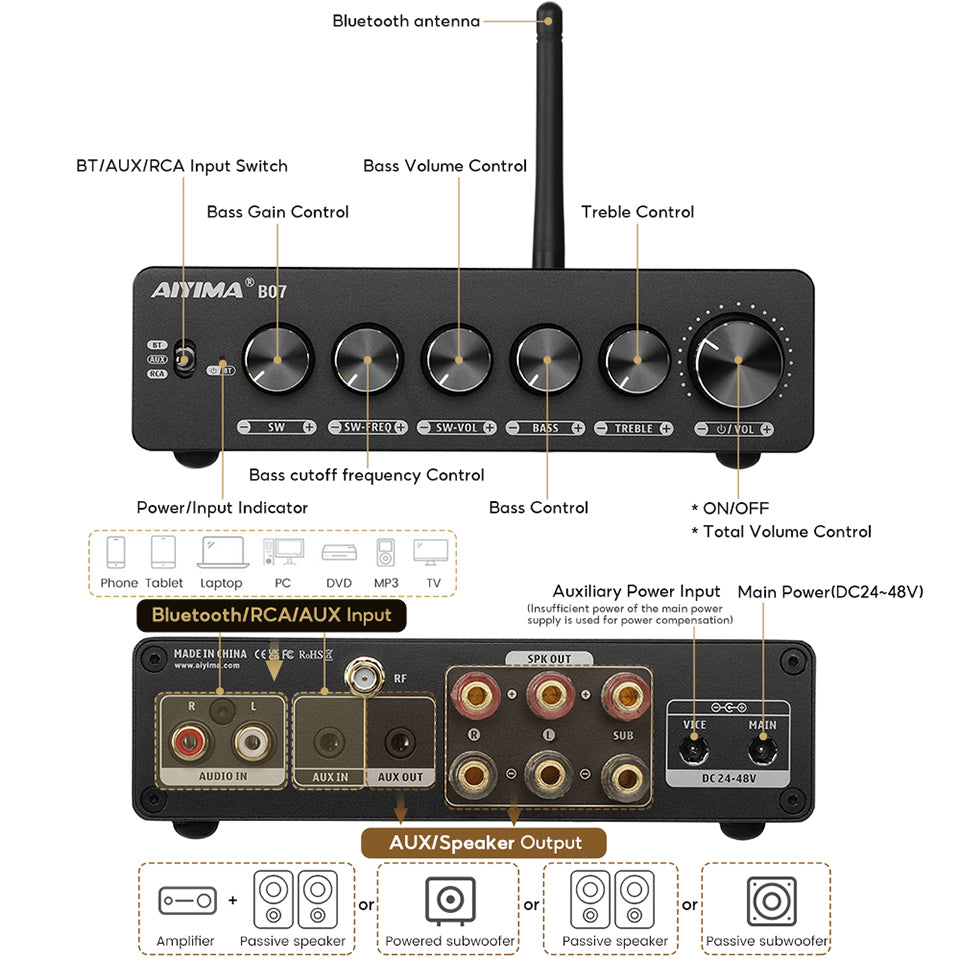

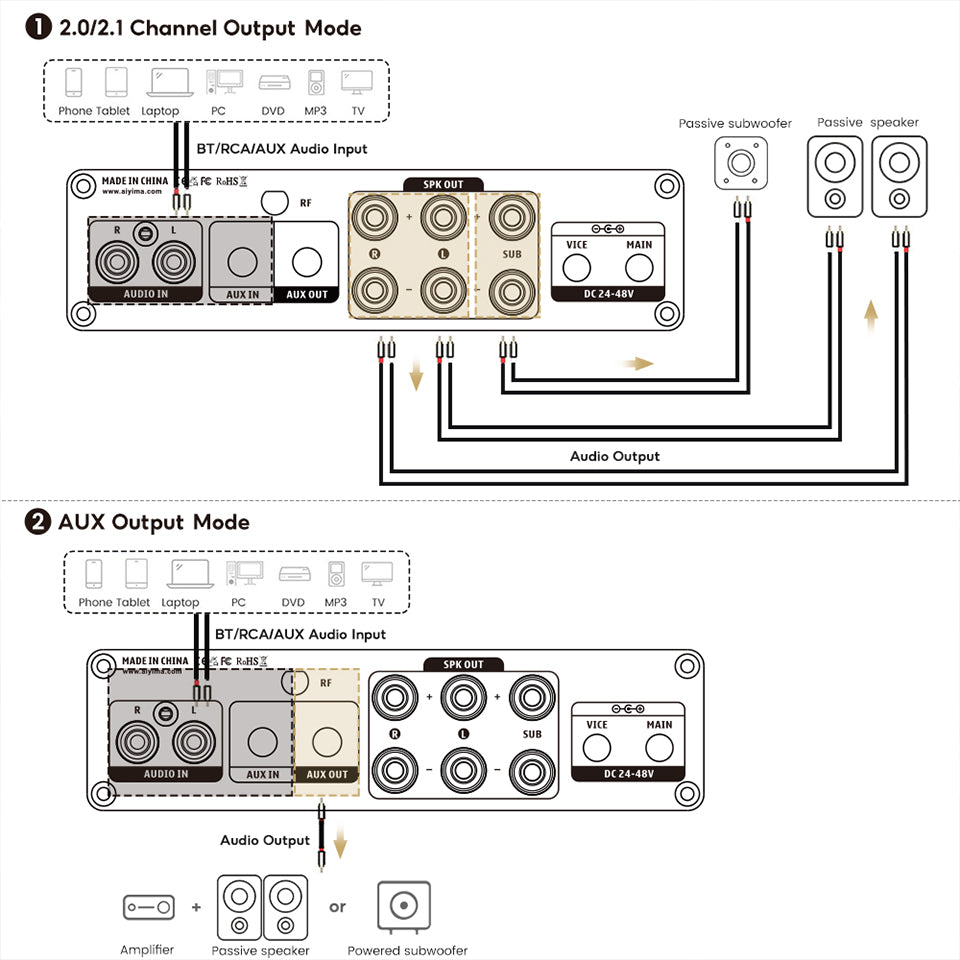

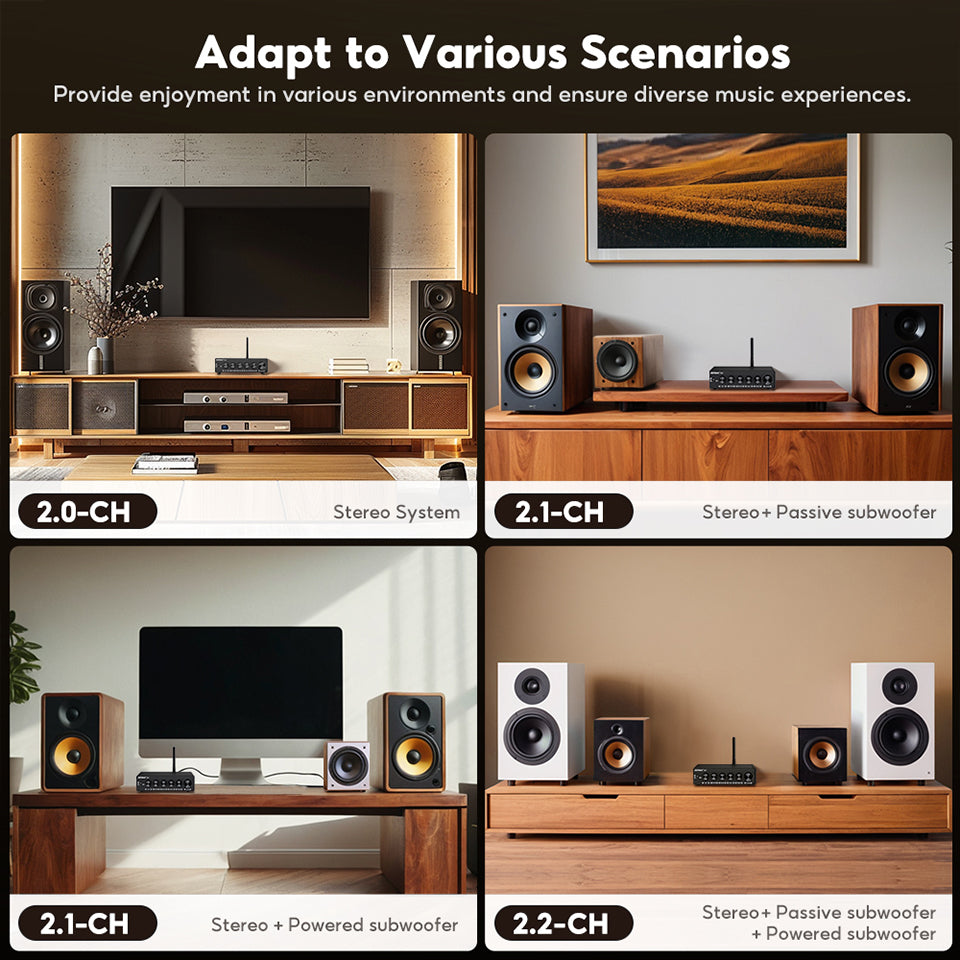

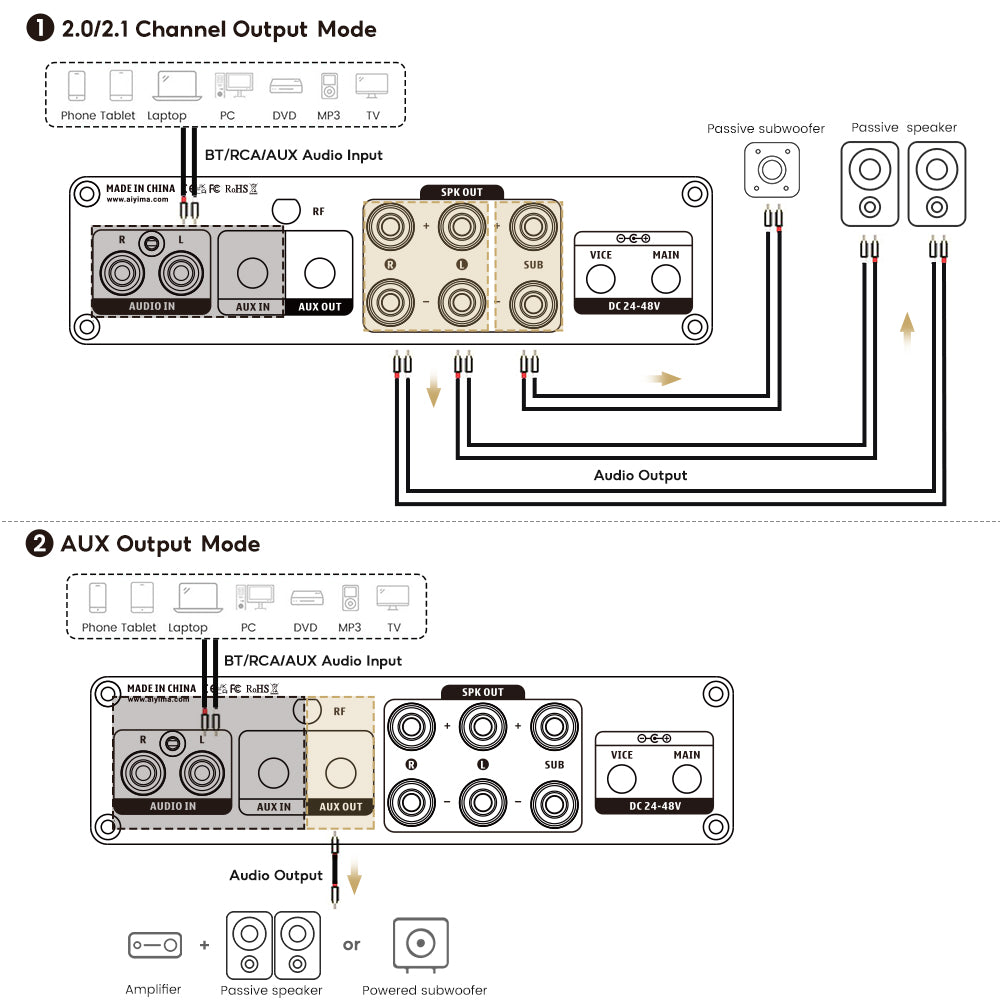

There are four ways to connect the B07,
2.0 channel: Only left and right channel speakers
2.1 Channel left and right channel speaker + passive subwoofer
2.1 Channel left and right channel speakers + active subwoofer
2.2 Left and right channel speaker + passive subwoofer + active subwoofer

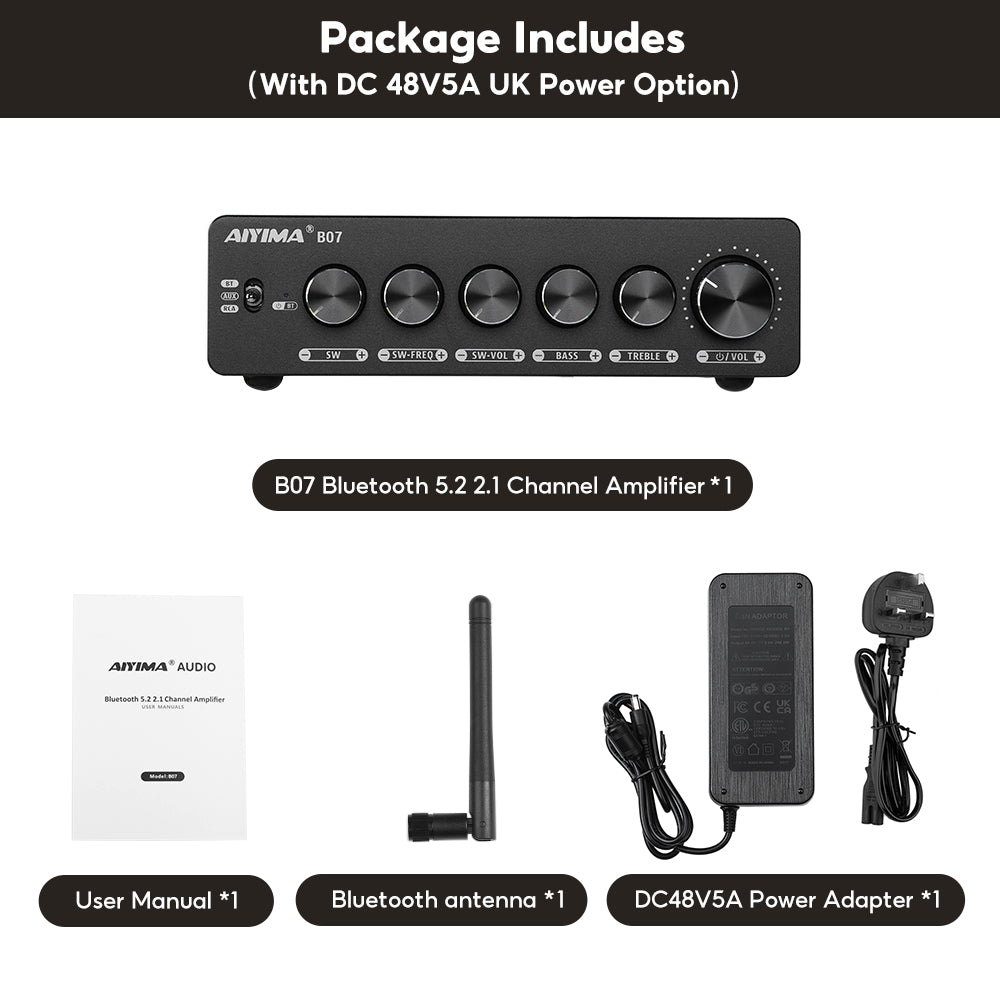

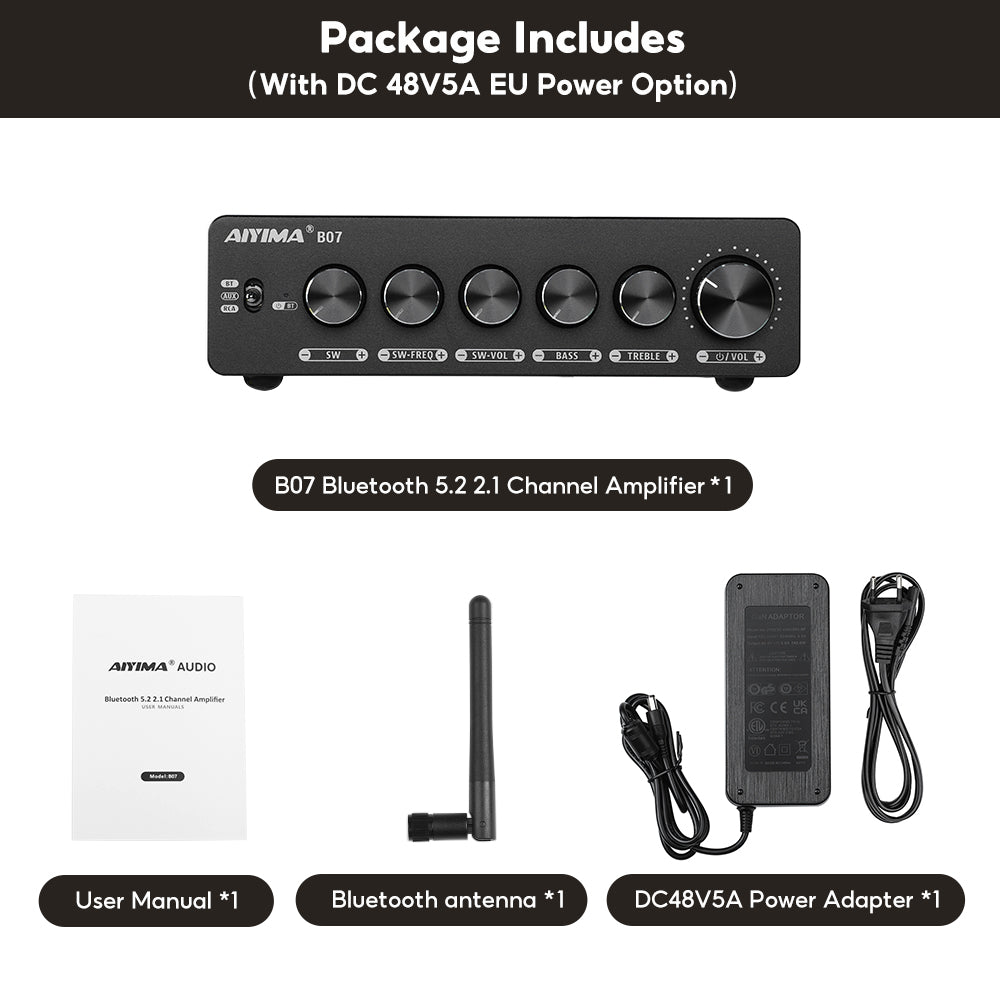

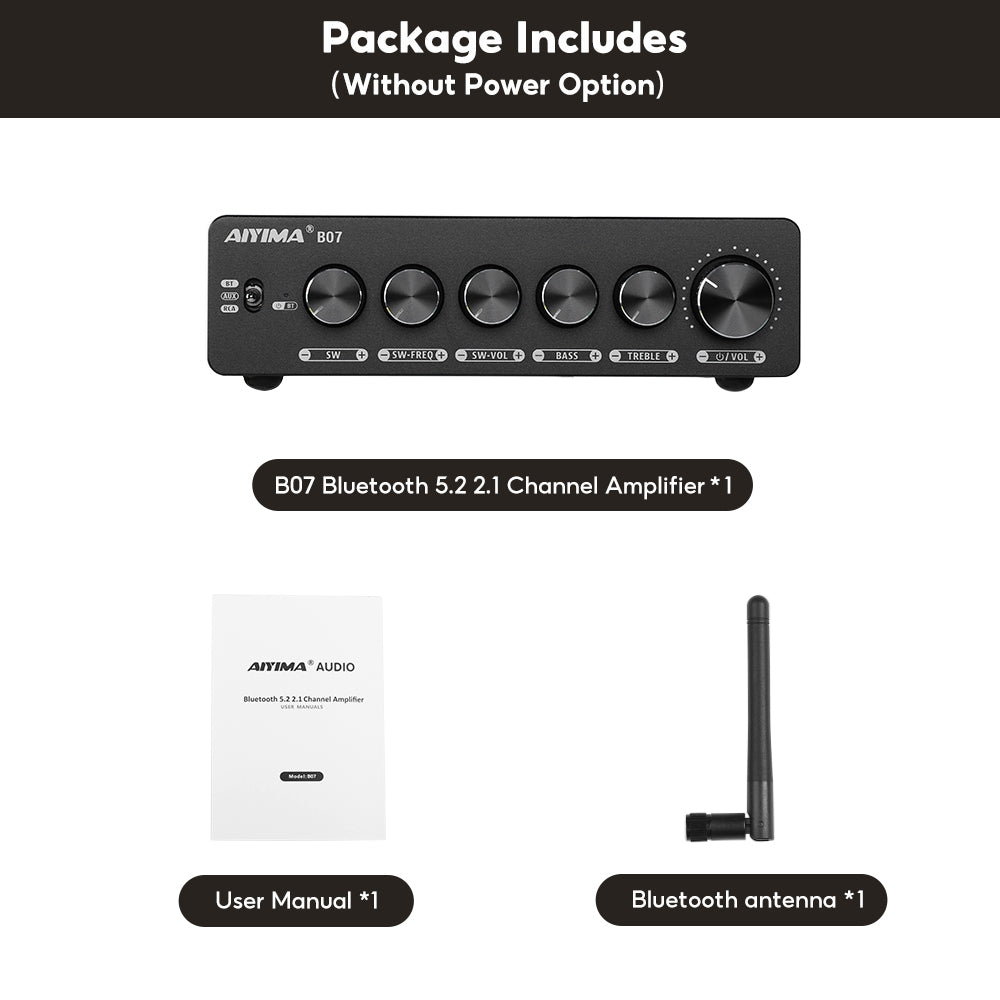

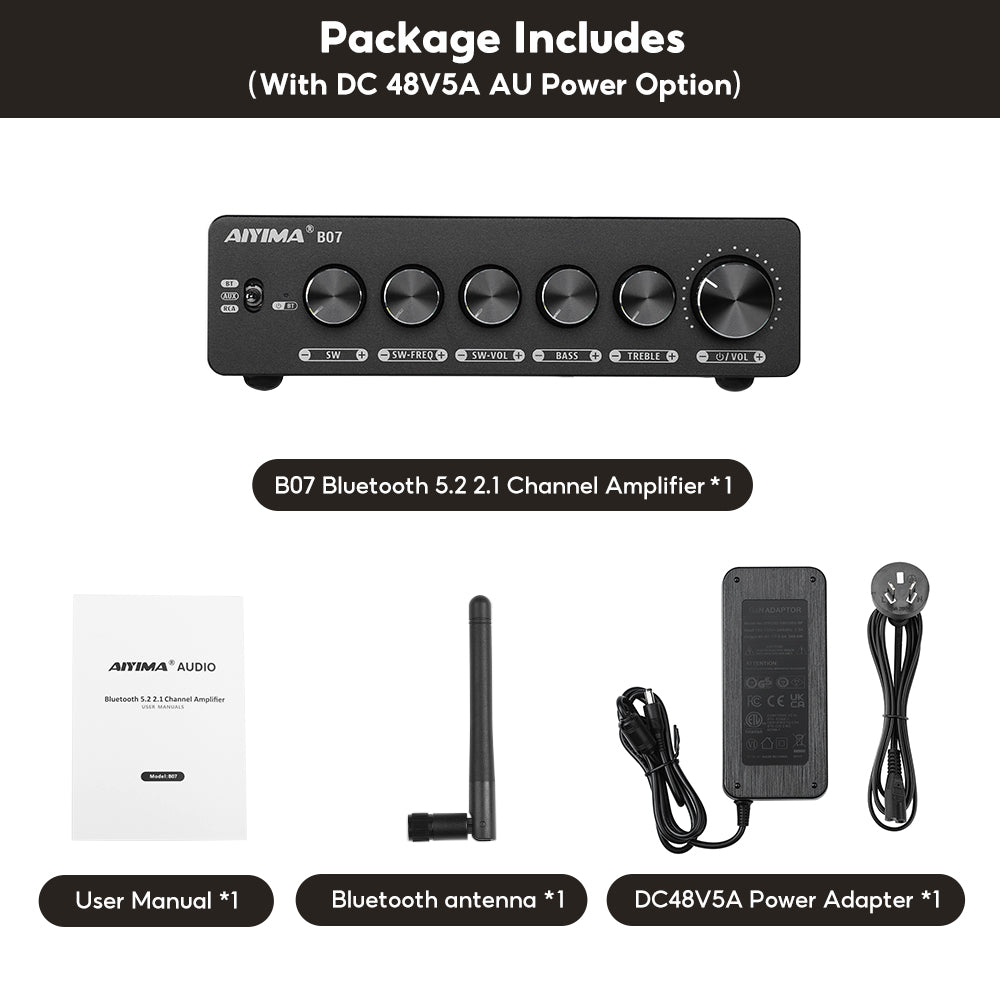

Package Included:
1×B07 Amplifier
1×Power adapter(it's option)
