AIYIMA B1

Product model: B1
Chipset: MP1484+NE5532+QCC5125+ES9018K2M
OP AMP chip: NE5532 (SMD OP amp)
Replaceable OP AMP chip: OPA1656 and other SMD dual OP amps
Bluetooth chip: QCC5125
Bluetooth 5.1 support: SBC, AAC, APTX, APTX-LL, APTX-HD, LDAC
Support sampling rate: 44.1-96kHz
PC-USB operating system：16bit/44.1-96KHz
Distortion: 0.04%
Signal-to-noise ratio: ≥114d
Frequency response: 20Hz～20kHz (±0.5dB)
Output voltage amplitude: 1.8VRMS
Input mode: Bluetooth 5.1
Supported devices: mobile phones, computers

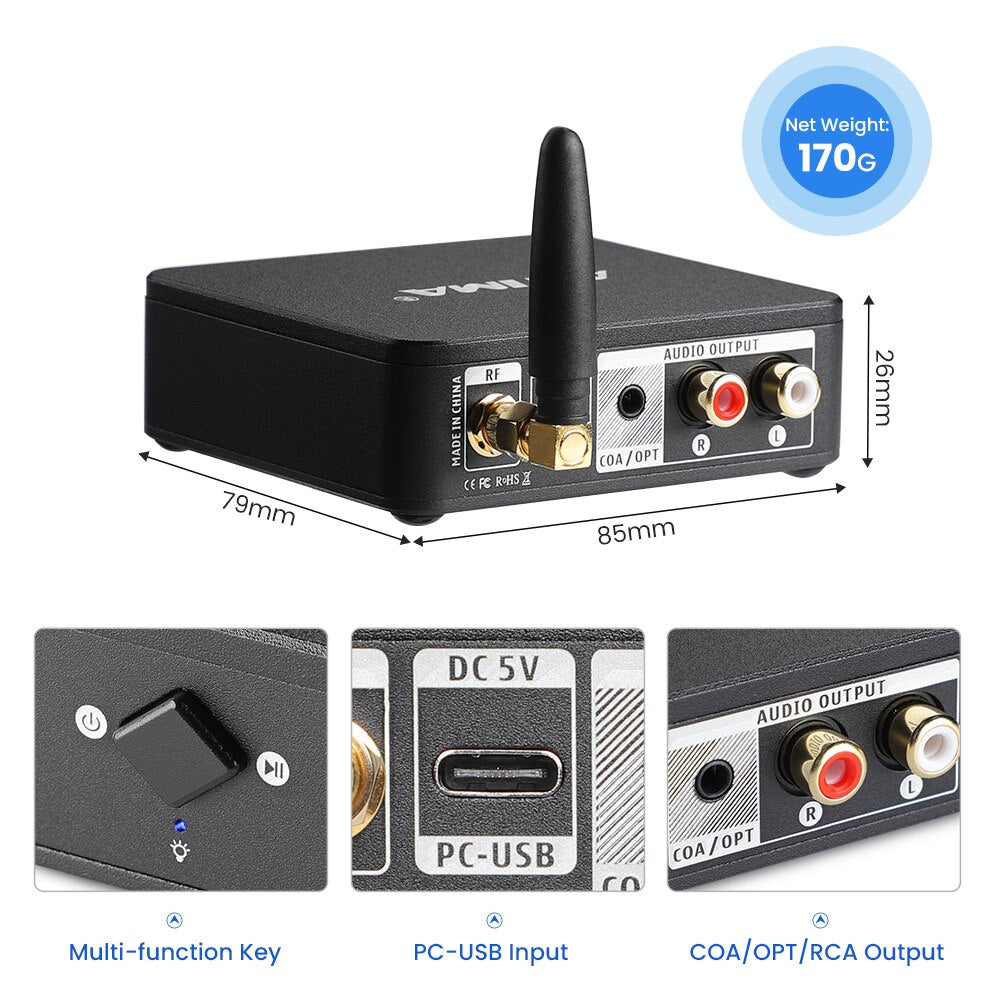

Output mode: to optical fiber, coaxial, RCA
Working power supply: DC5V
Size: Length 79*width 85*26MM

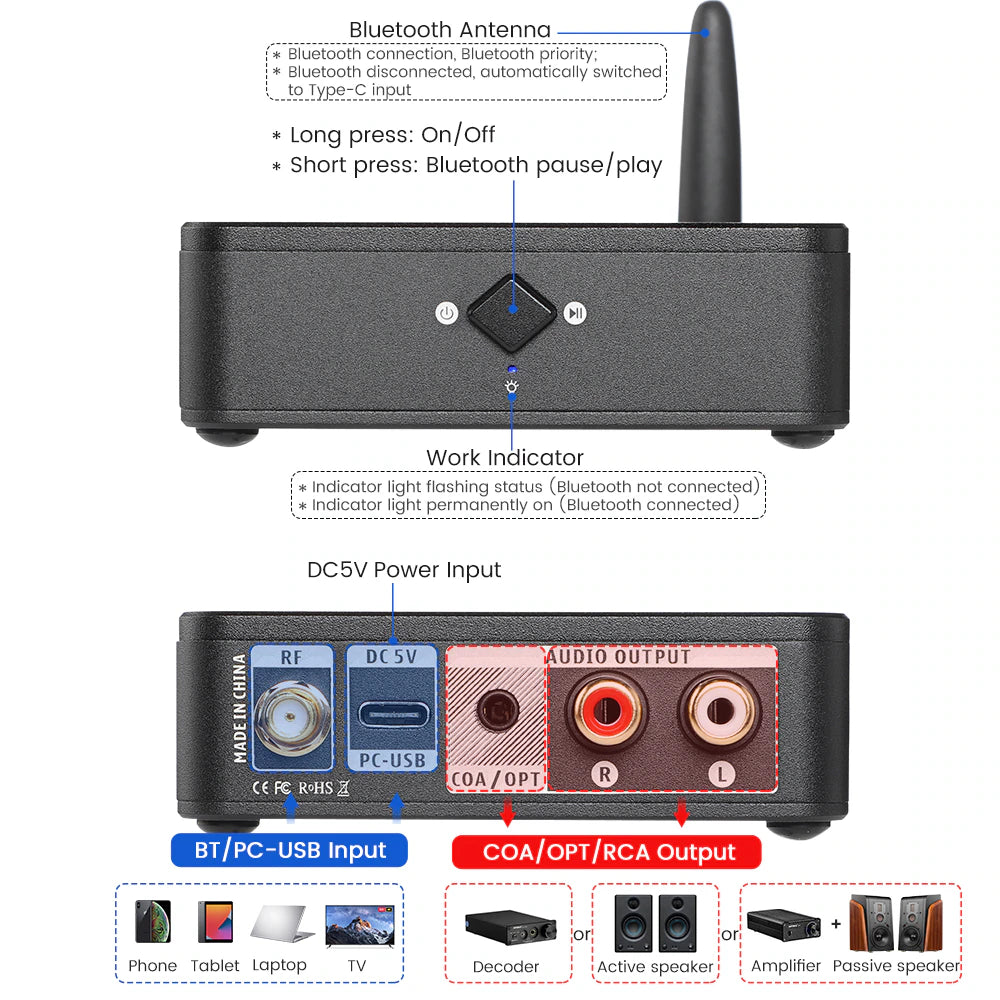

Bluetooth connection (BT HIFI AUDIO), Bluetooth priority
Bluetooth is disconnected and automatically switches to Type-C input
Indicator light flashing status----Bluetooth is not connected
The indicator light is always on-Bluetooth is connected

Package included:
1Pcs DAC B1
