AIYIMA DAC-A3 | Headphone Amplifier USB Decoder DAC Coverter Dual ESES9038Q2M USB Optical Coaxial Amplifiers 192KHz
Product description:
1. Using dual ES9038Q2m decoding, each chip is responsible for one channel, dynamic and better separation
2. There are more than ten voltage stabilizing circuits, each of which is independently powered, does not interfere with each other, and the sound details are better
3. The amp adopts TPA6120D2, a high-performance amp chip, which can drive 16-600 ohm headphones. The amp has gain adjustment. The output gain can be adjusted according to the sensitivity of the earphone.
4. One-key switch between earphone and RCA line output, you can switch without plugging or unplugging the earphone
5. With signal detection indication,
6.USB supports win xp/win7/win8/win8.1/win10 and Apple os operating systems, supports OTG of most mobile phones, and supports up to 24bit96kHz
7. Optical/coaxial support 16/24Bit 44.1/48/88.2/96/176.4/192kHz
8. Chipset VT1728A+Ak4113VF+ES9038Q2MX2+TPA6120A2+TL072x2+Lm4562+NE5532+C1237+MCU
9. Power supply: DC12V 1.5A power supply

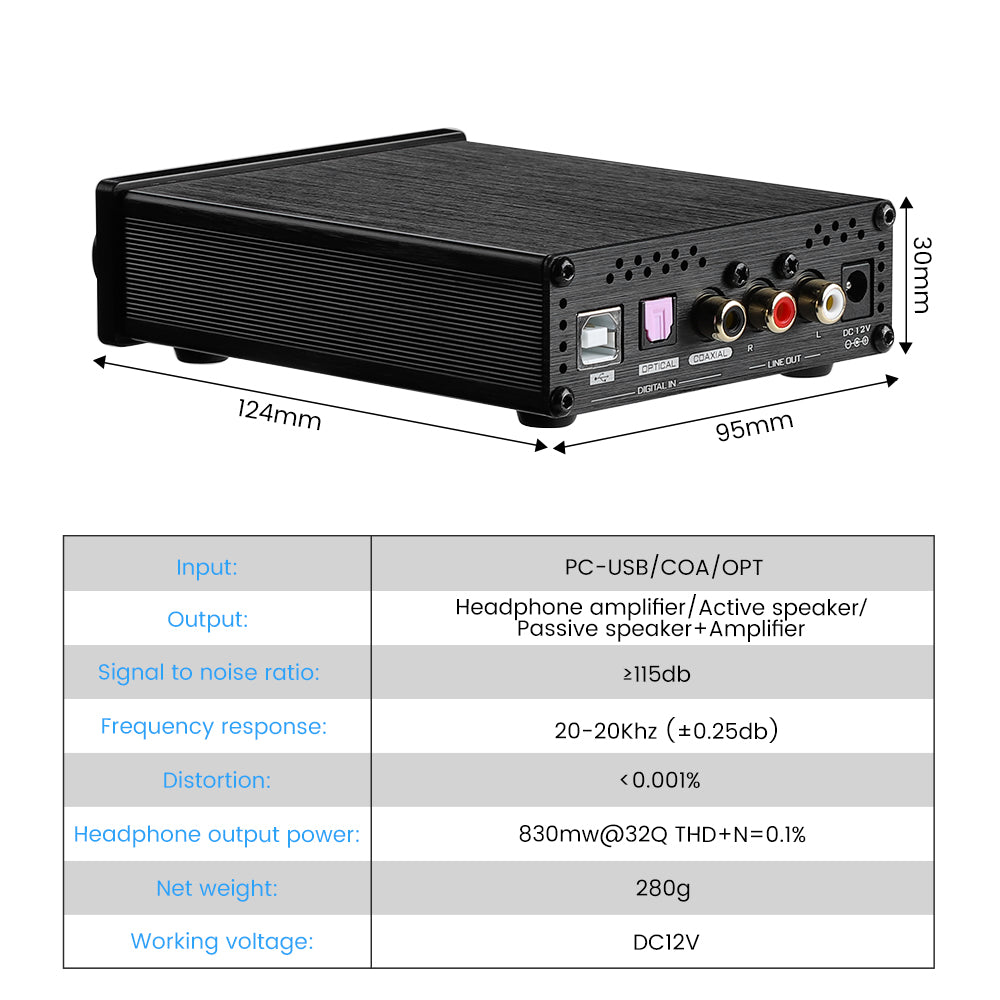

10. Size: 98*33*125mm ''without convex part''

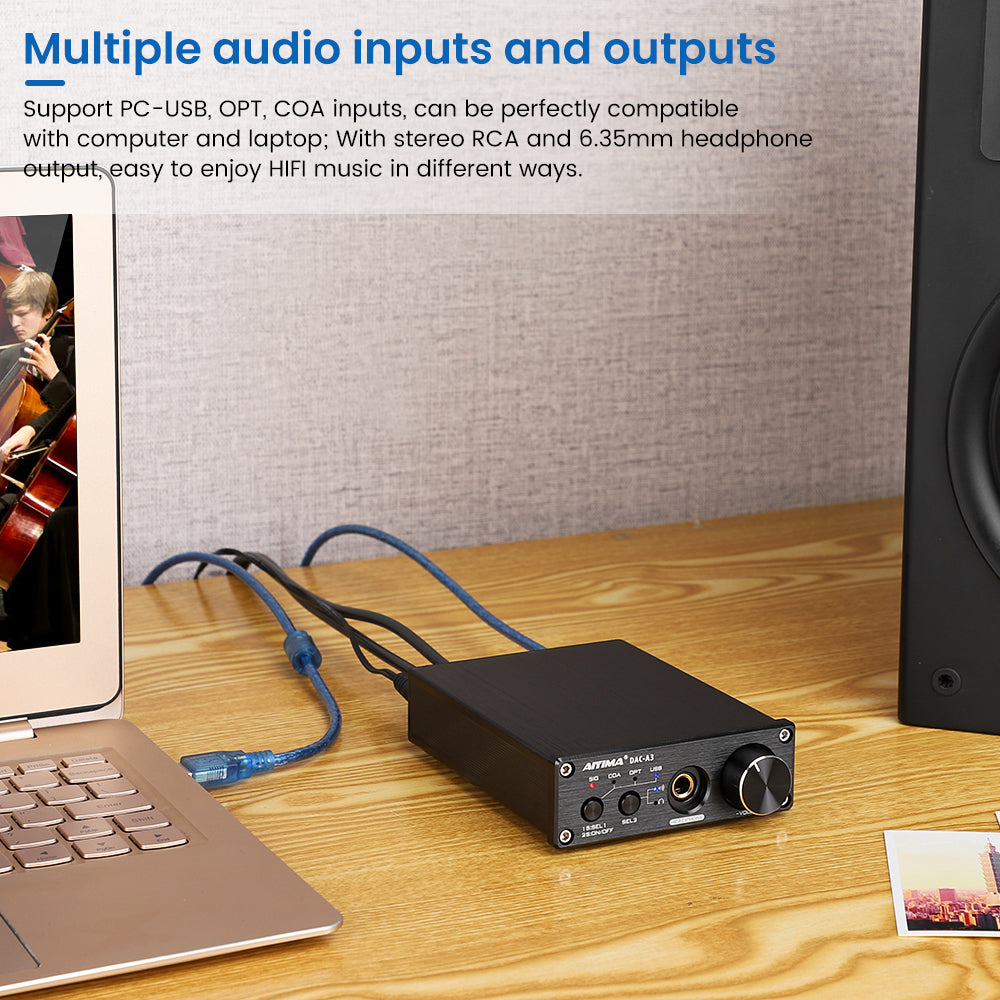

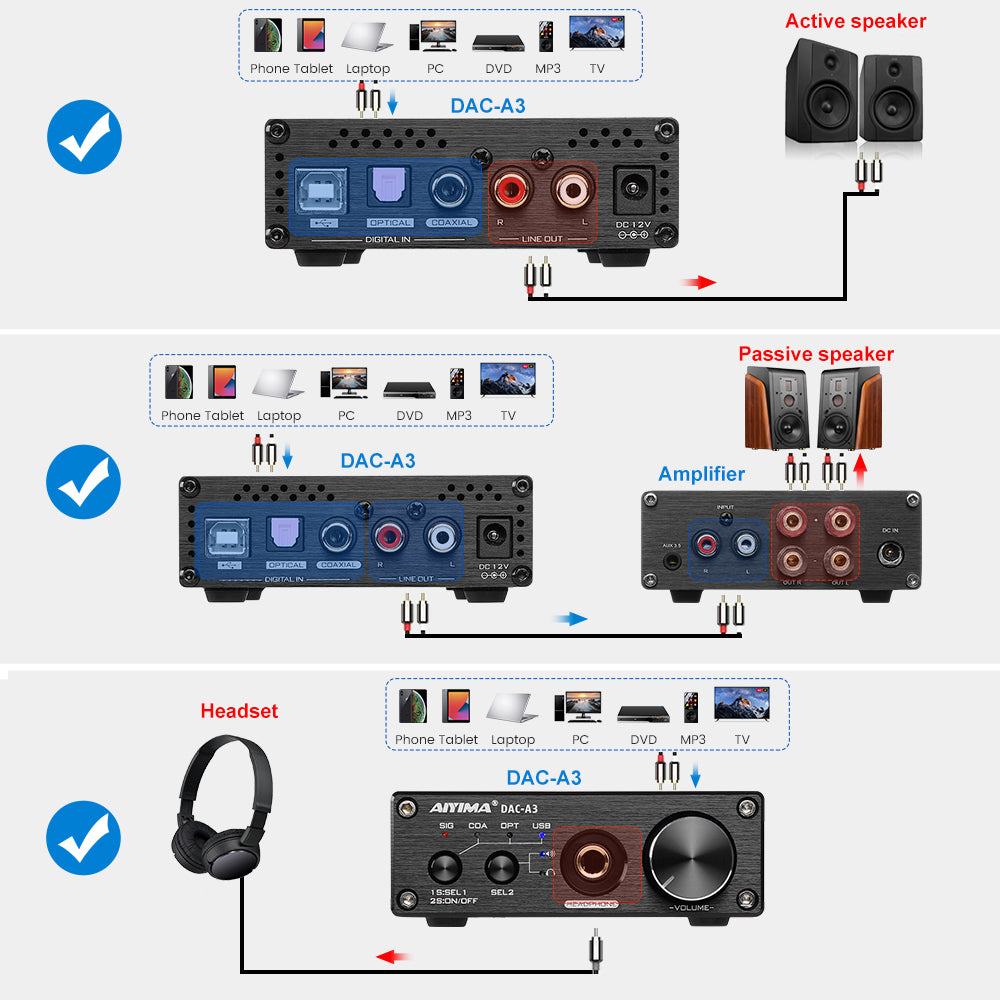

USB input: can connect to notebook/PC/OTG output devices
Optical input: can connect to TV/PC/DVD and other supporting optical output devices
Coaxial input: can connect to TV/PC/DVD and other devices that support coaxial output
RCA analog output: can be connected to power amplifier/active speakers
Package included:
1×Audio Decoder
1×DC12V Power Supply(Optional)
1. Using dual ES9038Q2m decoding, each chip is responsible for one channel, dynamic and better separation
2. There are more than ten voltage stabilizing circuits, each of which is independently powered, does not interfere with each other, and the sound details are better
3. The amp adopts TPA6120D2, a high-performance amp chip, which can drive 16-600 ohm headphones. The amp has gain adjustment. The output gain can be adjusted according to the sensitivity of the earphone.
4. One-key switch between earphone and RCA line output, you can switch without plugging or unplugging the earphone
5. With signal detection indication,
6.USB supports win xp/win7/win8/win8.1/win10 and Apple os operating systems, supports OTG of most mobile phones, and supports up to 24bit96kHz
7. Optical/coaxial support 16/24Bit 44.1/48/88.2/96/176.4/192kHz
8. Chipset VT1728A+Ak4113VF+ES9038Q2MX2+TPA6120A2+TL072x2+Lm4562+NE5532+C1237+MCU
9. Power supply: DC12V 1.5A power supply
10. Size: 98*33*125mm ''without convex part''
USB input: can connect to notebook/PC/OTG output devices
Optical input: can connect to TV/PC/DVD and other supporting optical output devices
Coaxial input: can connect to TV/PC/DVD and other devices that support coaxial output
RCA analog output: can be connected to power amplifier/active speakers
Package included:
1×Audio Decoder
1×DC12V Power Supply(Optional)
AIYIMA DAC-A3 | Headphone Amplifier USB Decoder DAC Coverter Dual ESES9038Q2M USB Optical Coaxial Amplifiers 192KHz
Sale price$89.99
Regular price$109.99 (/)
