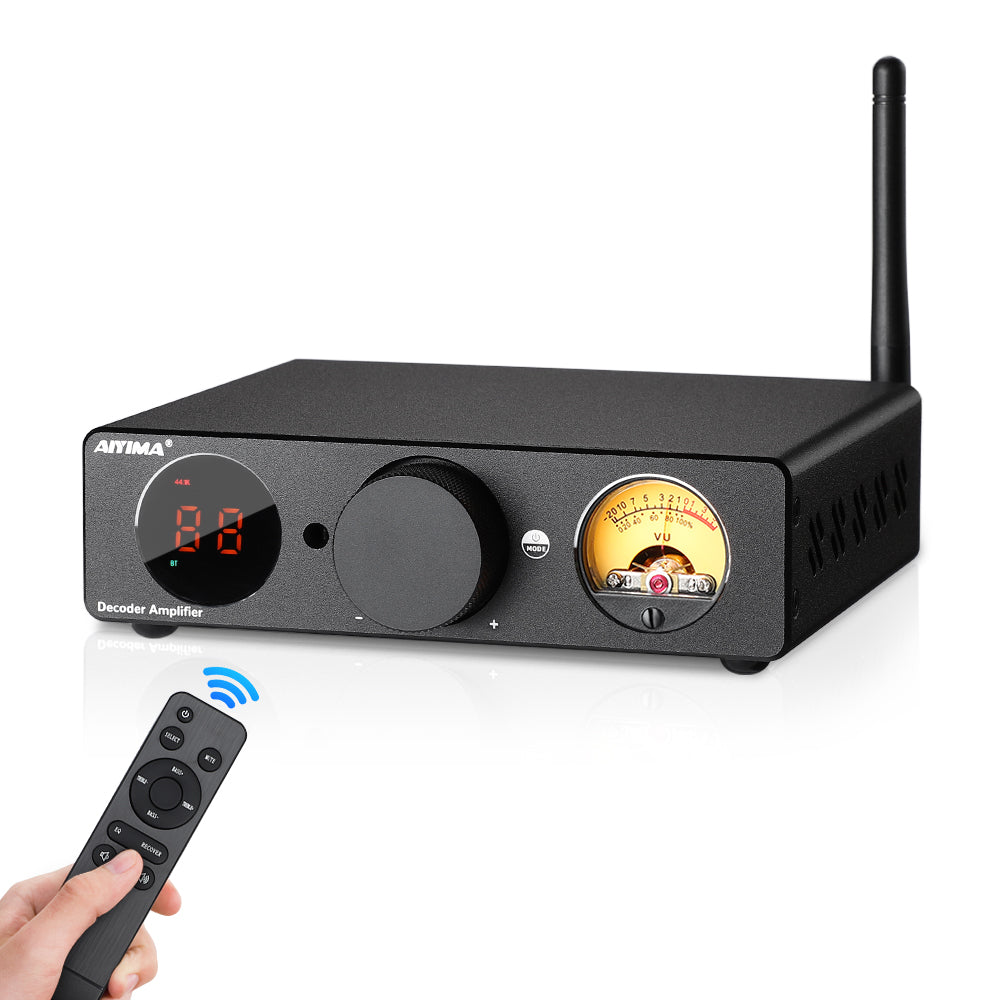

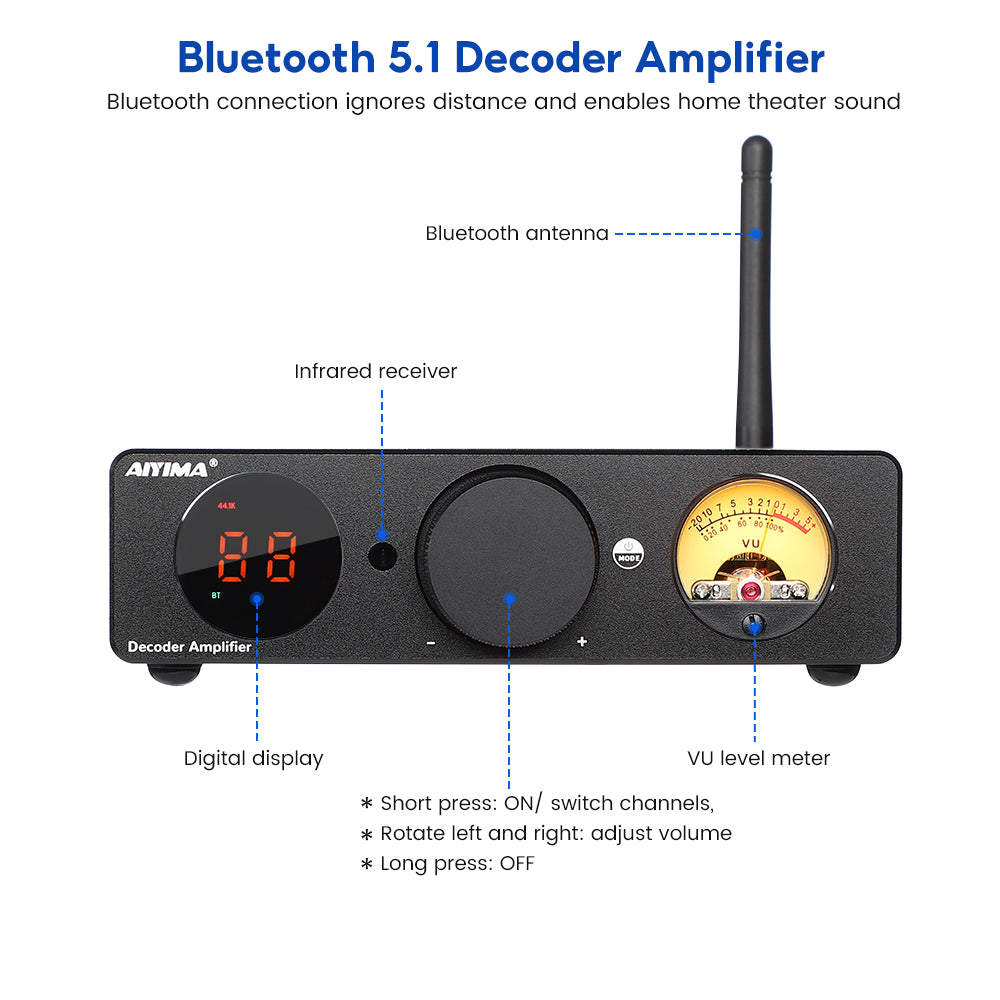

AIYIMA Decoder Amplifier
Product descriptions:
AIYIMA Amplifier:
·Stereo Max. output power: 2x300W (@4 0hm)
·Stereo Speaker impedance: 4 - 8 Ohm
Supply power :DC24-48V , 5A or more
.3.5mm AUX Maximum Output level: 2.3V
·Frequency response: 20 Hz ~ 20KHz（±1dB）for Speaker output
·Frequency response: 20 Hz ~ 20KHz（±0.5dB）for AUX output
·S/N ratio: ≥104 dB（COA/OPT/USB input）
S/N ratio: ≥100 dB（BT/RCA input）
·THD: 0.008%(@1W)（COA/OPT/USB input）
·THD: 0.015%(@1W)（BT/RCA input）
·Input sensitivity: 0dBFS / 0.775V
QCC3031+ES9018K2M+NJW1194+TPA3255DDVR+SA9123L+TPS5430+QDDARQ1+LM16030

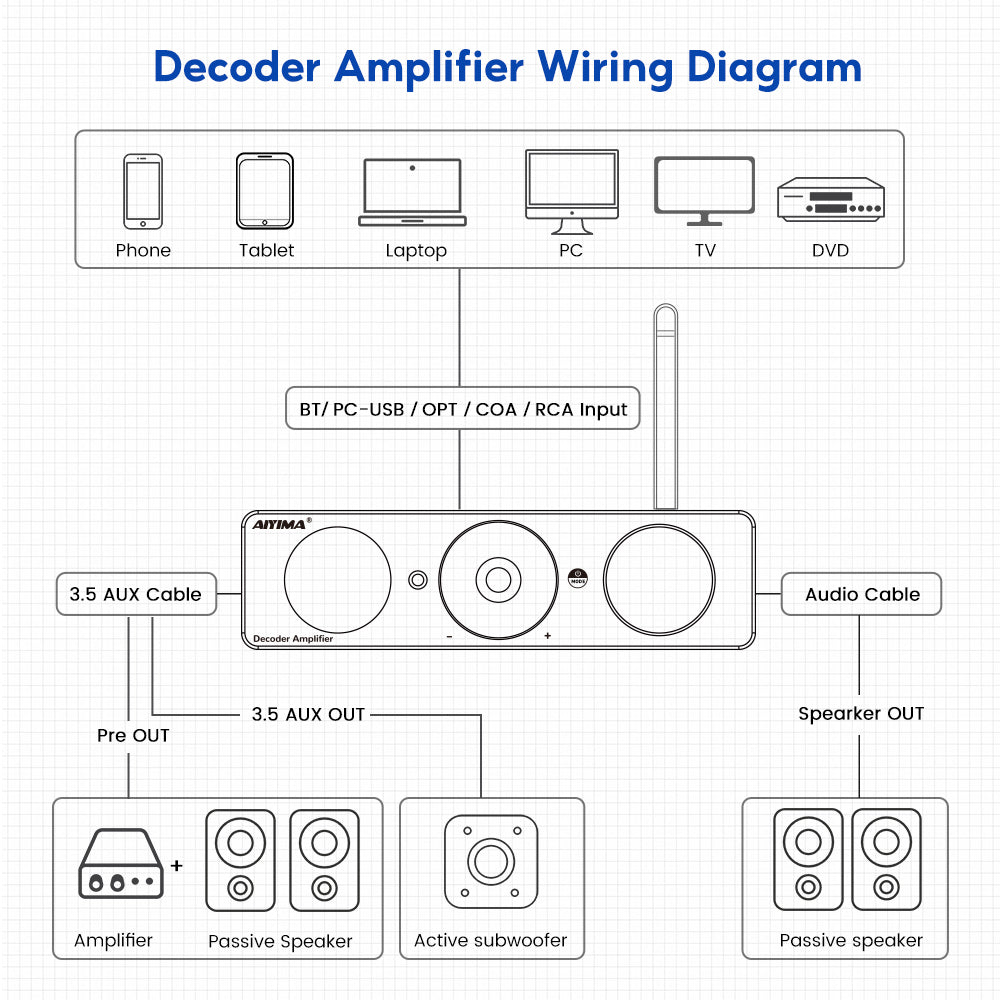

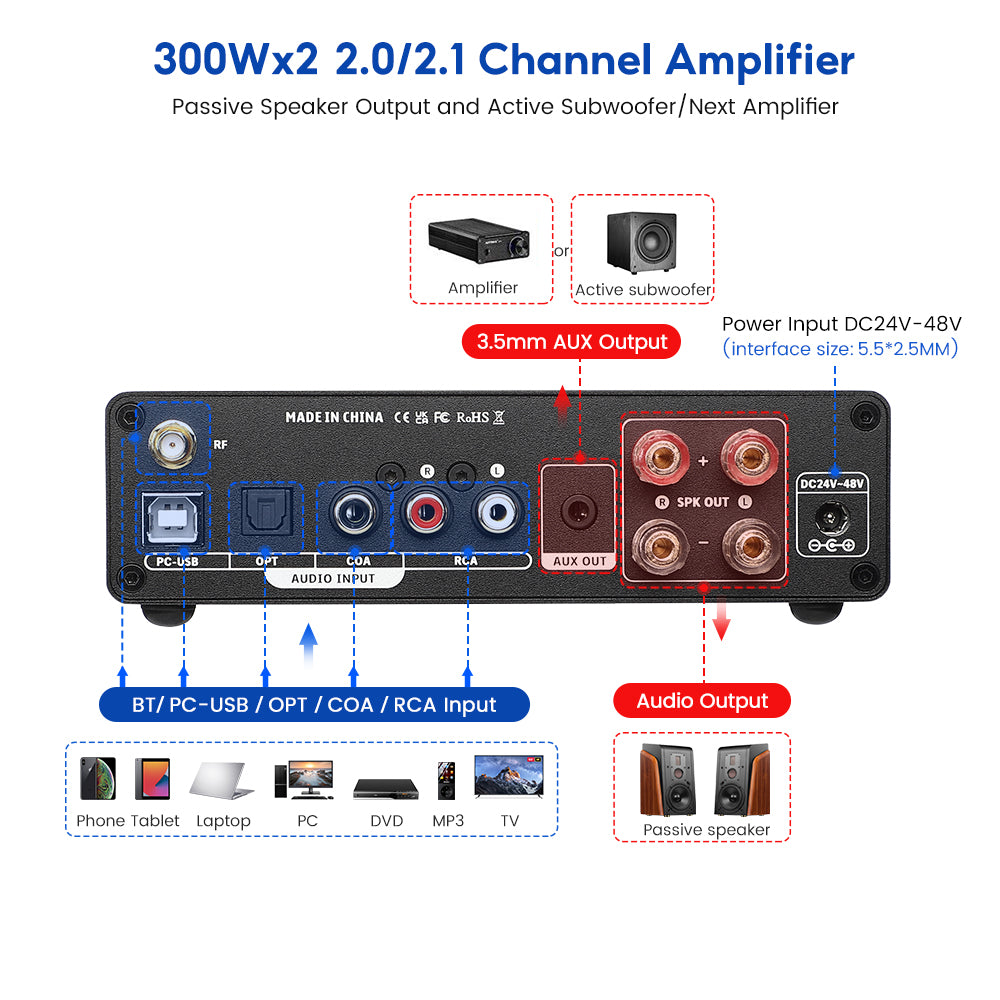

Audio input : Bluetooth/PC-USB/OPT/COA/RCA
Audio output: SPK OUT(connect with passive speaker)+AUX OUT(connect with power amplifier or active speaker)
AUX OUT: connect with power amplifier or active speaker
3.5mm AUX OUT as output connect to next amplifier with volume control
Size:254*124*42MM
Note: If you want to get a better sound output, please put the treble-3db and the bass +3db.
The Amplifier output power is related to the supply voltage/current, the speaker impedance, if you want get more powerful output, also please choose powerful supply power, we recommend DC48V 5A or more.

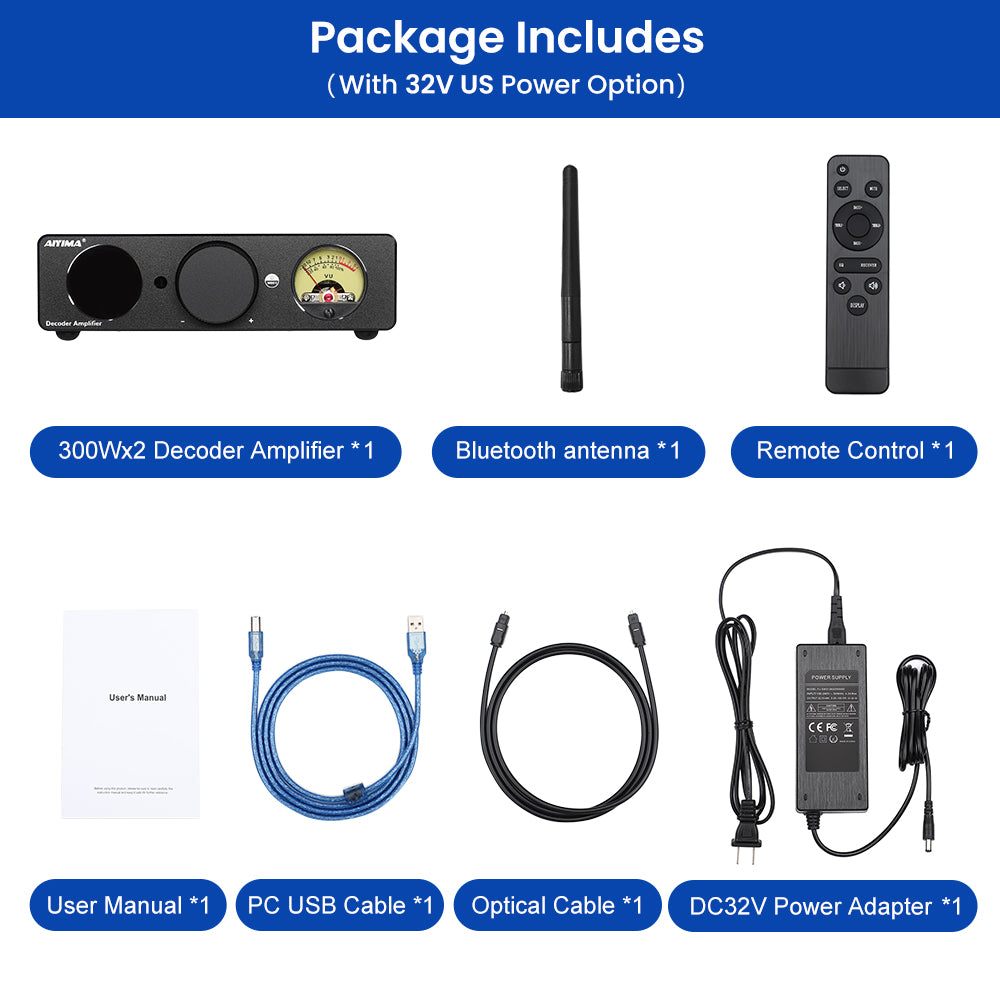

Package included:
1Pcs AIYIMA Amplifier
1Pcs Power Adapter (Optional)
Customer Reviews
god!
He adquirido un amplificador Aiyima y no podría estar mas contento. Es muy curioso que siendo uno de los mejores amplificadores tipo D que he probado sea tan poco conocido. Además no ayuda el hecho de haberle dado un nombre tan genérico que no ayuda a encontrarlo, además no está disponible ni en Europa ni en EEUU.
Lo recomiendo junto con una fuente de alimentación de 48V y 10A, puede con todo.

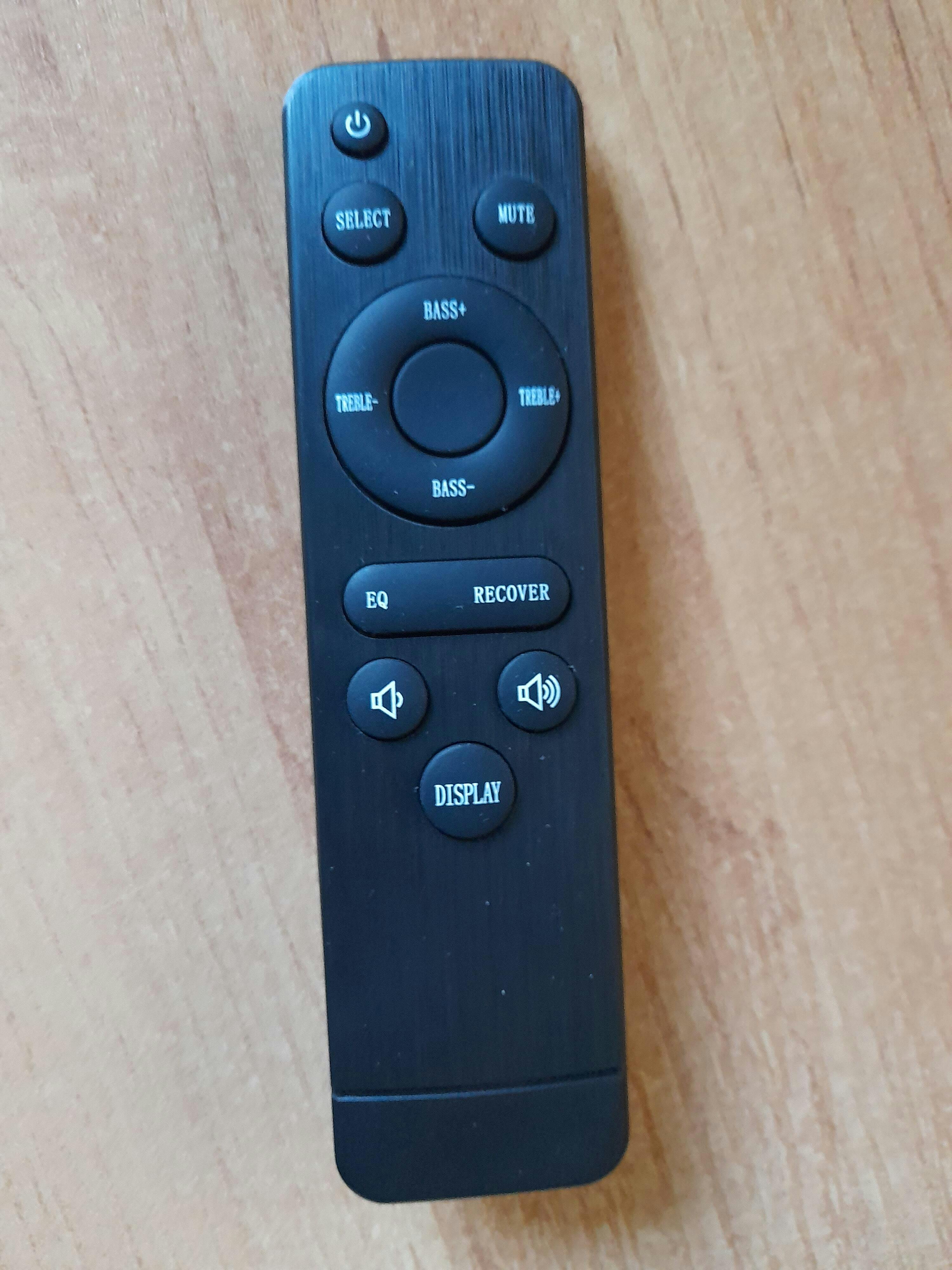

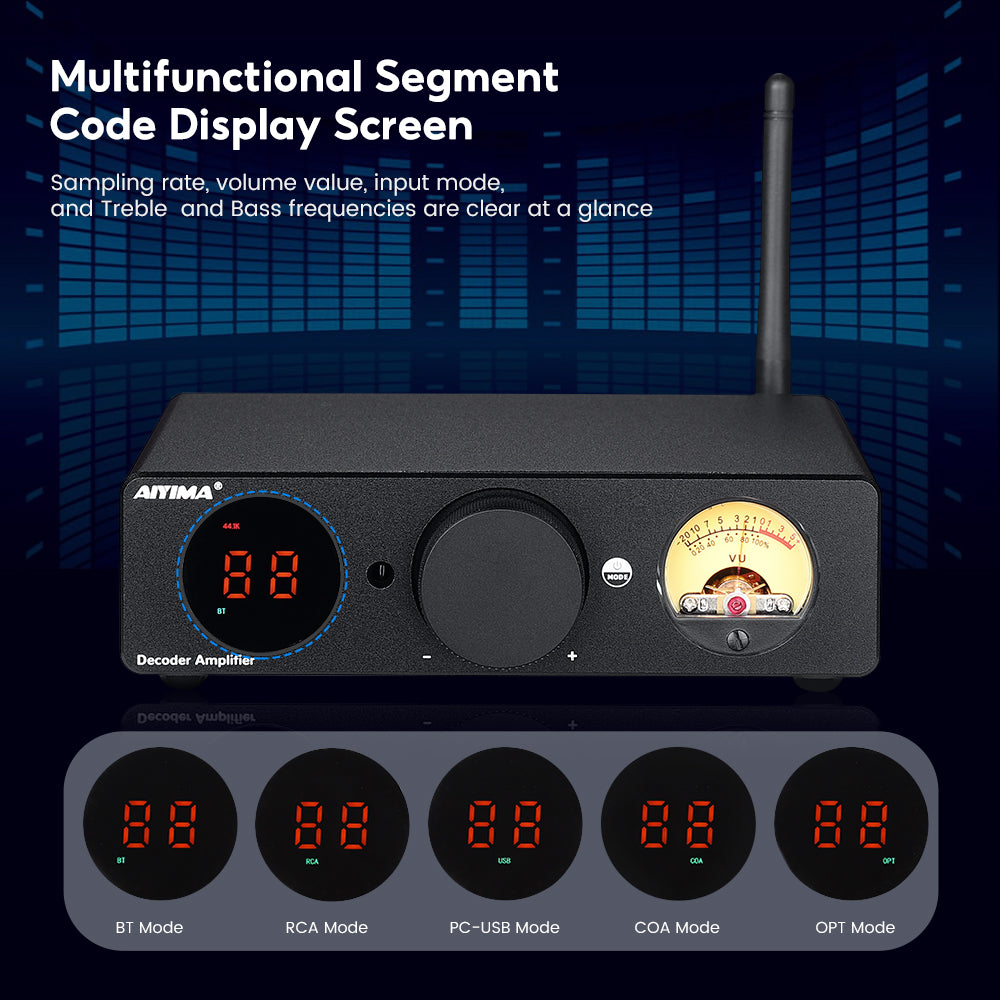

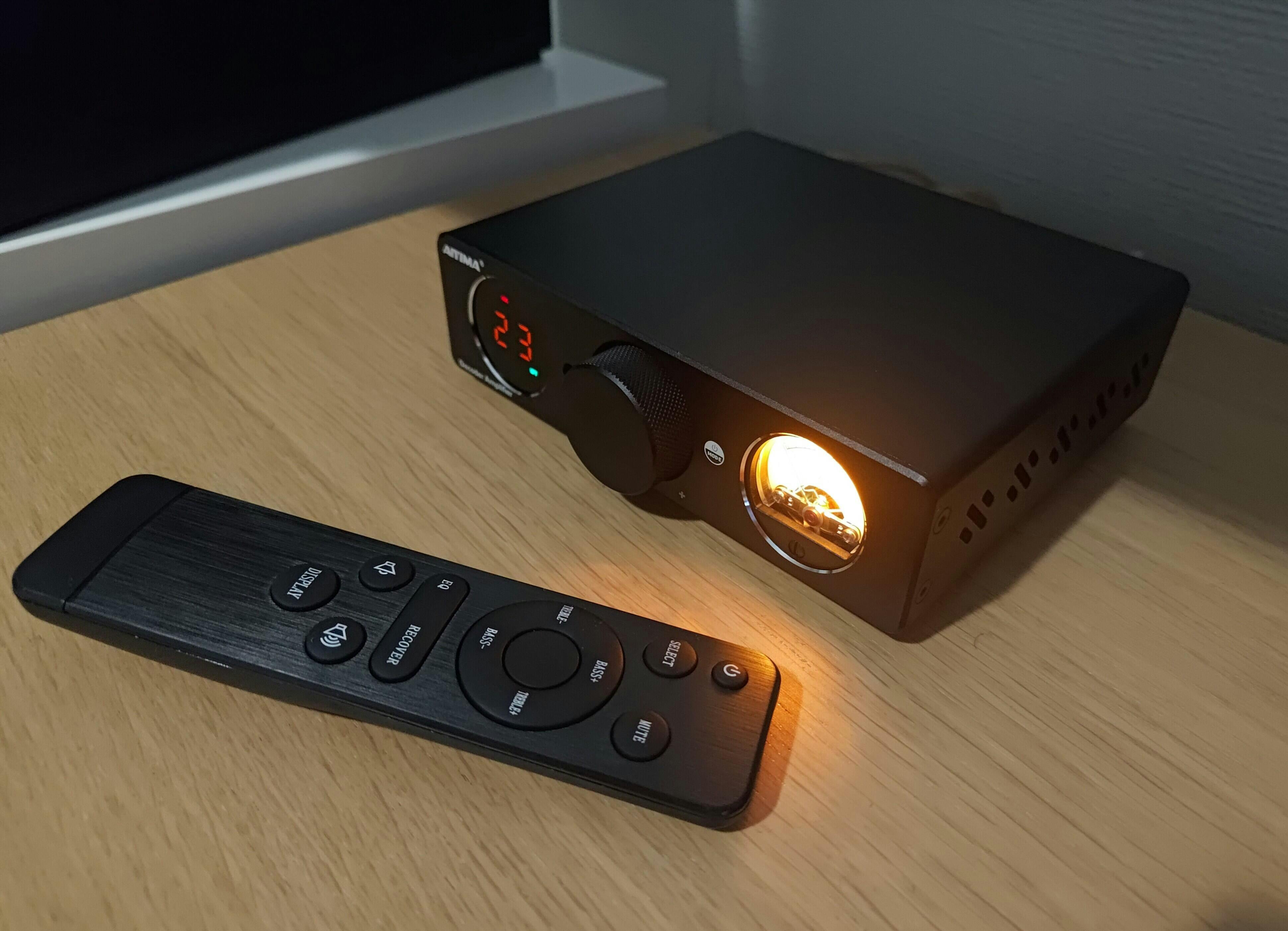

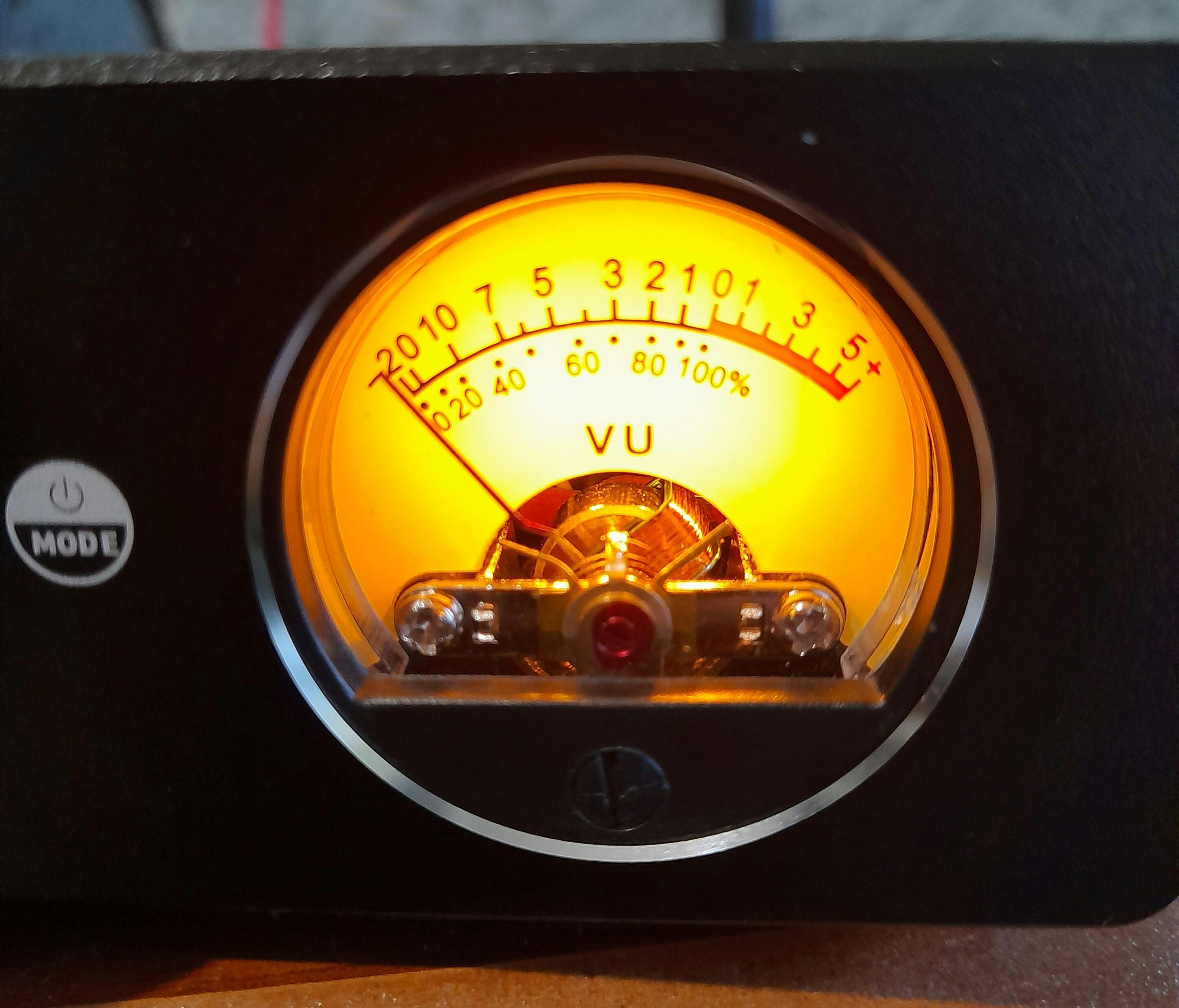

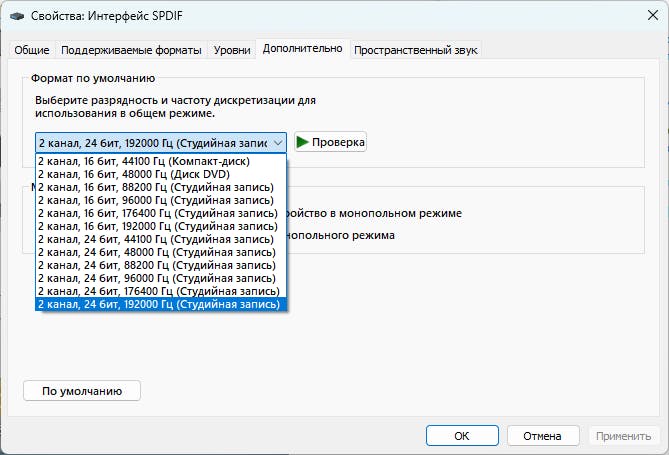

I use it as a DAC through the optical in and it seems to work OK. No big issues with sound quality. I like the controls, they are nice and simple. You need to use the remote to access advanced features. The display and backlight of the VU meter can be turned off which is nice because they can be quite distracting in a dark room. It gets pretty warm in use – not hot enough to be uncomfortable to touch on the outside but still way more waste heat than I expected.
Clear and powerful sound! Beautiful design! I am happy to have bought this amplifier!
