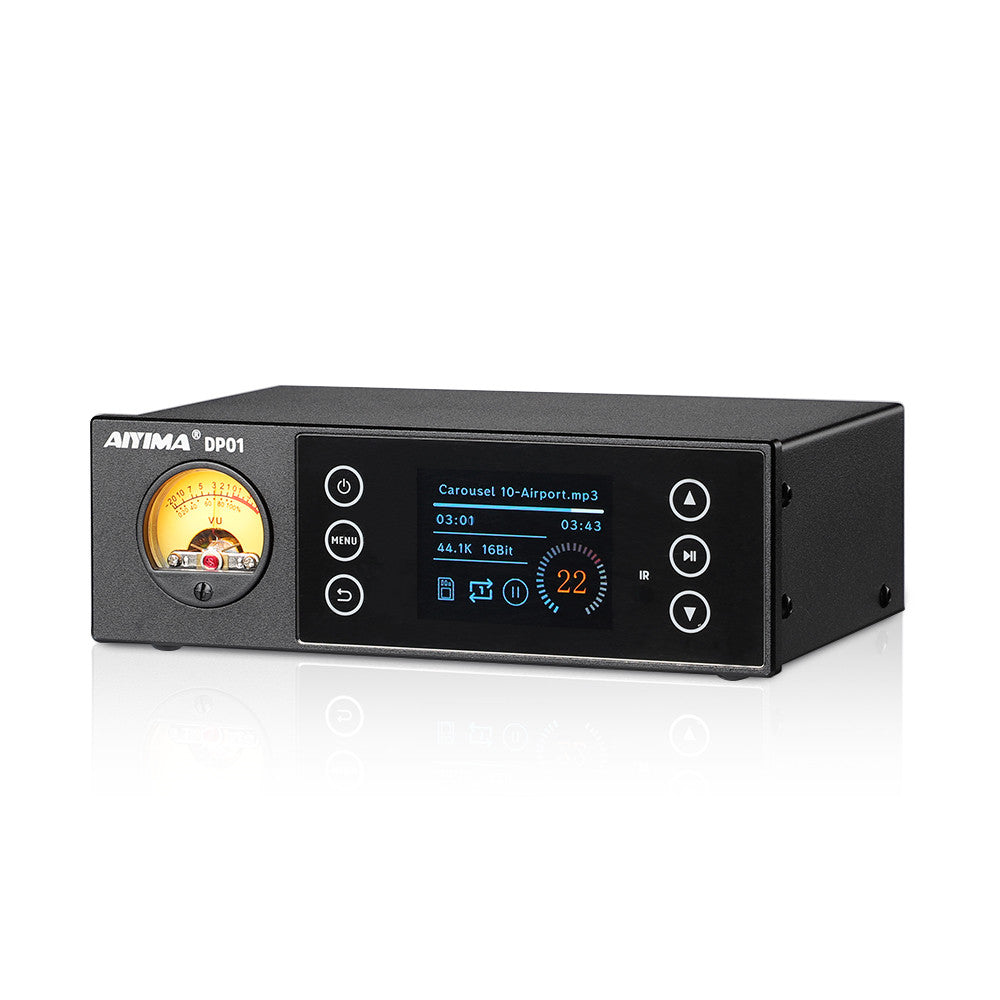

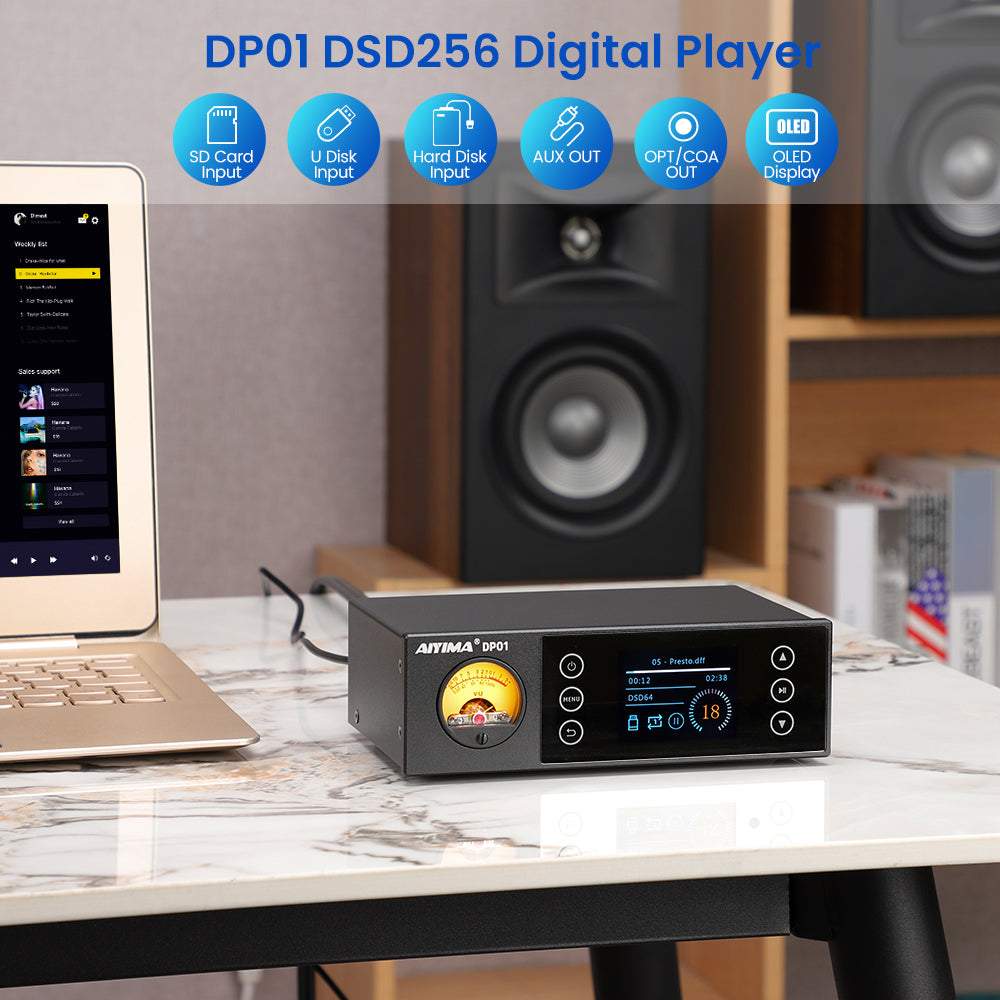

AIYIMA DP01

Features:

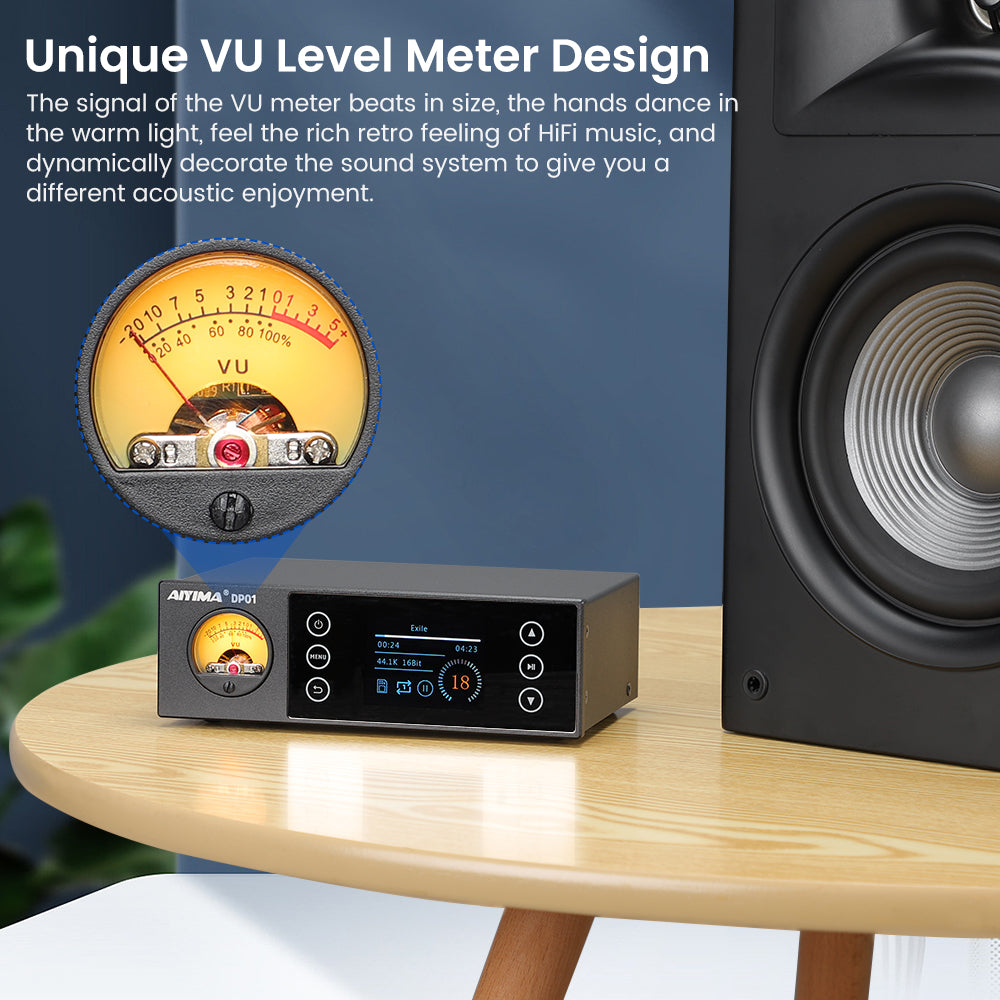

1.Modern technology and vintage design combination: DP01 digital audio player, convenient to enjoy high-quality sound from digital mater tape whose sound field, density, dynamic and resoltion far exceed the sound of traditional CD player. With VU meter, the pointer dancing in the warm light, dynamically decorates the audio system space.
2.Multiple audio outputs and ultra-high sound quality: with S/PDIF coaxial and optical digital outputs (up to 24bit/192Khz/dop64), RCA and AUX analog outputs with preamplication. Support 32Bit/384kHz high bit rate WAV digital audio stream, ISO / DFF / DSF (up to DSD256) and DTS various music formats, enjoy HIFI music even without wired audio source.
3.Strong software and unique display modes: support U-disk / hard-disk and SD card inputs, plug and play, easily read a variety of digital signals, using source code lossless transmission, no sound rendering to provide more real music enjoyment; VU meter display supports to show internal signal or external sound (with microphone pick-up), perfectly match with different usage scenarios.
4.Mini size but poweful and humanized design: not like traditional audio player with large body, DP01 is compact easy to carry and use; but its functions are very strong, with operation button on the top panel also with remote control, easy to adjust all items; wth 2.4 inch OLED screen, show all working status clearly and detailedly.
5.Advanced craftmanship and attractive looking: black metal case effectively resist external interference, smooth and delicate hand feelings; the combination of VU meter and OLED screen looks special and practical, provide both wonderful acoustic and vision enjoyment even in limited space.
DP01 supports Chinese, English, Japanese, French, German, Western, Vietnamese, and Russian languages.

Parameters:
Model: DP01
Audio input: SD card / U-disk / Hard-disk

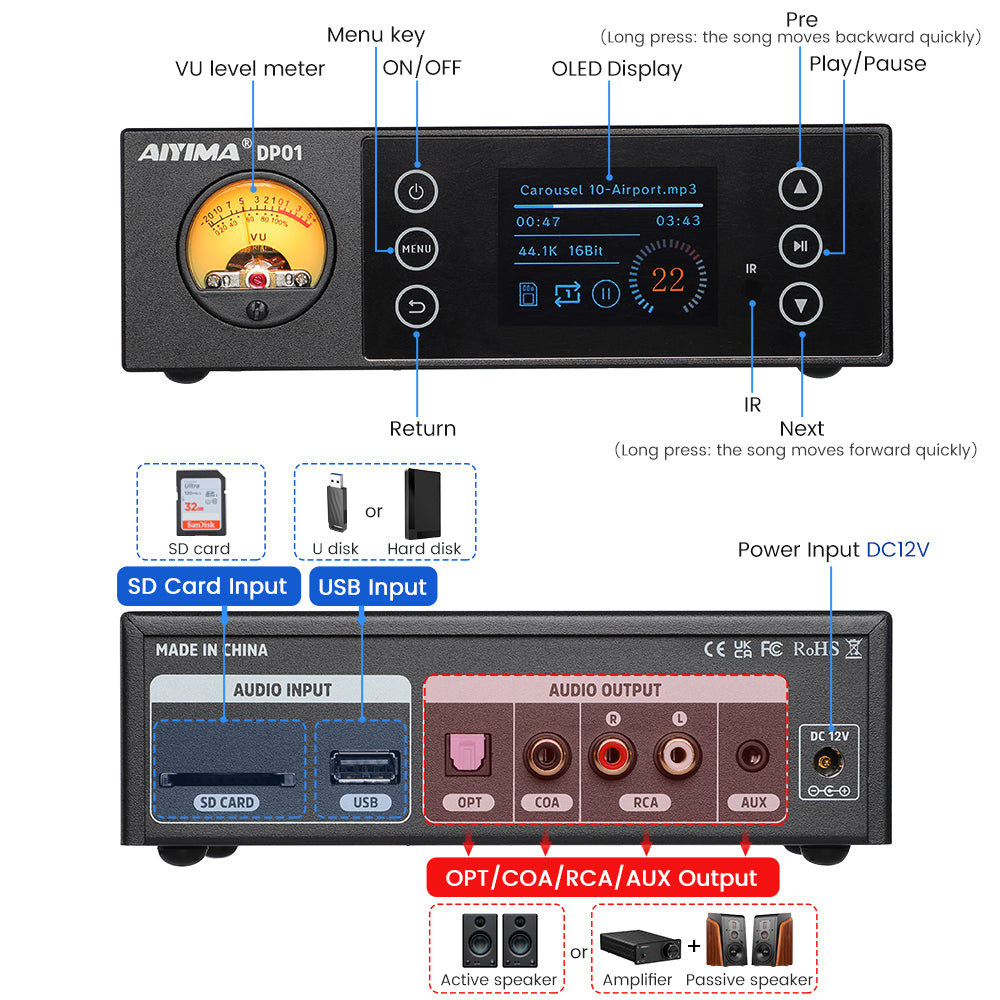

Audio output: Coaxial / Optical / Stereo RCA / AUX
Music files supported and max. Sampling rate support WAV (384KHz/32Bit) MP3(48KHz/16Bit) FLAC(192KHz/24Bit) ISO(DSD256) APE(48KHz/16Bit)
DSF(DSD256) DFF(DSD256) DTS(Output front L/R channel)
Firmware upgrade: support U-disk update
USB interface: support USB 3.0 and below
SD interface: support CLASS10 and above
CUE playback: support WAV / APE / FLAC
SPDIF output: max. 192KHz 24Bit / DOP64
Hard-disk format supported: FAT32 / exFAT
Max capacity of hard-disk: 2TB
Max capacity of U-disk / SD card: 512G
Analog output level: 2Vrms
File system: Multi partition not supported

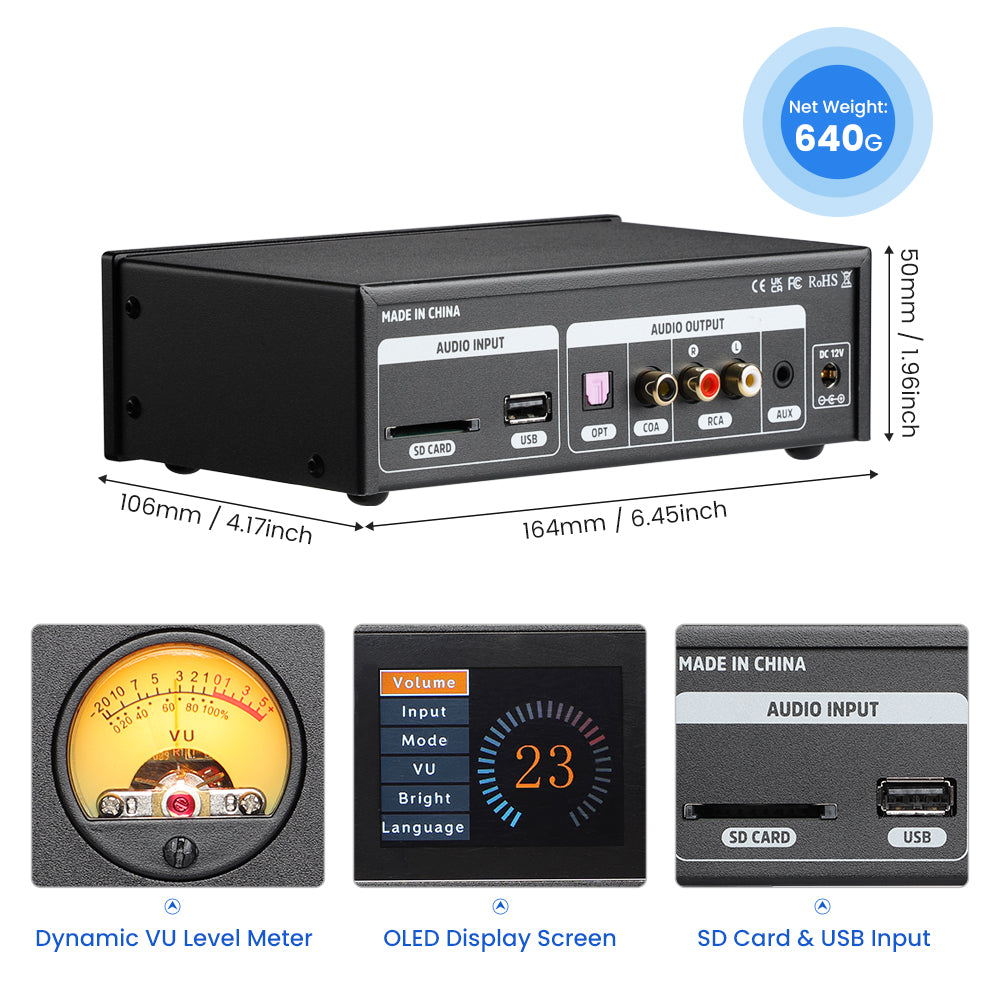

Dimensions(W*D*H): 164*106*50mm

Note：
1. There are two screws on the bottom of C100, designed to adjust the sensitivity of VU meter to realize better display effects.
2. For safer and faster shipping, 2*AAA batteries inside the remote control are not included, please prepare by yourself.
3. Support DTS format, but only can output two channels (front left and front right).
4. All outputs will work at the same time and the volume button controls the volume of all outputs synchronously.

Package included:
1PCS DP01
1PCS Remote control (Without Barreries)
1PCS DC12V Supply Power (optional)
